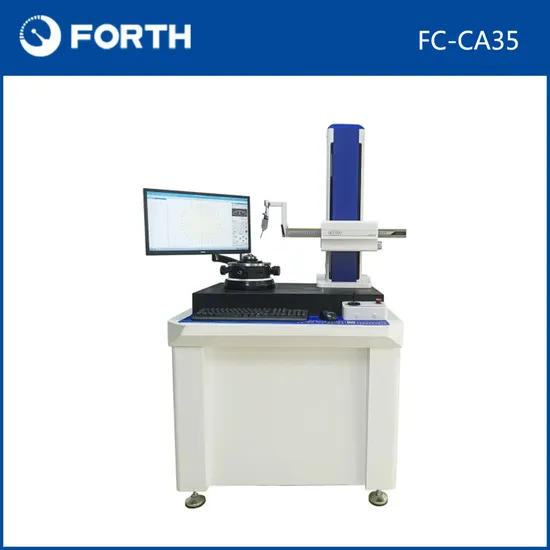

Advanced High Precision Cylindricity Measurement Tool for Accurate Results

Product Description

main function Product Description: Explore the precision world of roundness evaluation with Guangdong FORTH Science Technology Co., Ltd.'s innovative tools. Our products offer a range of features including roundness, coaxiality, concentricity, pulsation, verticality, parallelism, flatness, and surface waviness analysis. With evaluation methods like the minimum area method, least square method, minimum circumscribed circle method, and maximum tangent circle method, our tools ensure accurate results.
Our roundness filter bands cater to various needs, from 1 to 500, ensuring comprehensive analysis. The wave level filtering mode includes options like 3-16, 3-17, 15-500, and 17-100 for detailed assessments. Utilizing the Gauss filtering form as per ISO Standard, our products guarantee precise and reliable measurements.
Product Parameters

Items		Parameter
Measuring range	Max. dia.	ф400mm
	Min. inner dia	ф3mm
	Max height	550mm
Spindle accuracy	Radial error	±(0.025+5H/10000)μm
	Axial error	±(0.020+6X/10000)μm
Parallelism between Rotary Axis and Z-Axis Guideway		2μm/400mm(generatrix as datum)
Worktable	Table dia.	φ200mm
	Rotation dia.	φ420mm
	Load Wt.	60Kg
	Adjustment range	Adjust the eccentricity ±2mm; adjust the level ±1°
	Rotating speed	0-12 rpm
Column	Straightness(small range)	0.5μm /100mm
	Straightness(whole range)	0.8μm /400mm
Horizontal arm	Horizontal moving distance	180mm
	Moving speed	0.5-6mm/s or manual
Detector	range	500μm (radius difference)
	Resolution	0.005μm
	Stylus shape	Ruby ball head (2mm diameter)
	Sensor orientation / adjust the angle	Both parties to / ± 45
Data acquisition		Import grating at 14400 points / week
amplified factor		Any to a maximum of 200,000 times

Detailed Photos
Company Profile Welcome to Guangdong FORTH Science Technology Co., Ltd. At Guangdong FORTH Science Technology Co., Ltd., we specialize in the sales and maintenance of a wide range of precision instruments. Our headquarters is strategically located in Guangzhou, a city known for its economic prowess and excellent transportation infrastructure.
Our Commitment We have established long-standing partnerships with renowned global instrument brands such as FISCHER, ZEISS, BRUKER, and more, enabling us to offer top-notch products and exceptional customer service. Our mission is to provide our customers with high-precision instruments, superior user experience, and unmatched service.
Our Products Our product range includes measurement instruments like projectors, surface roughness measurement instruments, material testing instruments such as hardness testers and thickness testers, and chemical analysis instruments like gas chromatographs and infrared spectrometers.
Our Business Concept At Guangdong FORTH Science Technology Co., Ltd., we believe in putting the user first, prioritizing quality, and delivering the best service possible. We are dedicated to staying at the forefront of technological innovation and exceeding customer expectations.
Contact Us If you are looking for high-quality instruments and exceptional service, look no further than Guangdong FORTH Science Technology Co., Ltd. We warmly welcome customers from around the world to experience the difference our products and services can make.

---
