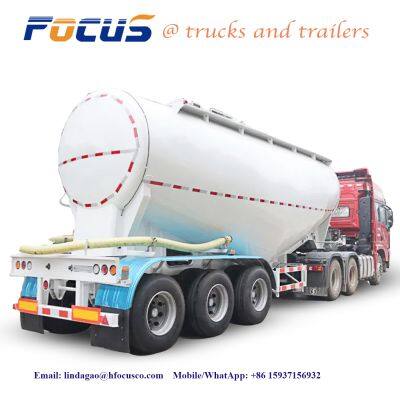

| Cement tank Model | Specification | ||||||||
| Overall dimensions:(mm) | 10750×2500×3850 mm | ||||||||
| Tank volume | 38 m3 | ||||||||
| Tank thickness | Tank body 5mm | ||||||||
| Unload tube | D type /1 units 7.2m length | ||||||||
| Manhole | 2 pieces | ||||||||
| Frame and running construction | |||||||||
| Axle | FUWA13T /3 | ||||||||
| Tyre | 12R22.5 /12 | ||||||||
| Rim | 9.0-22.5 /12 | ||||||||
| Leaf-spring | 90width*10pieces*12mm/6 sets | ||||||||
| Relay valve | WABCO | ||||||||
| Kingpin | 90#, bolted type | ||||||||
| Landing gear | 28T standard, two side operation | ||||||||
| Suspension | Reinforced type | ||||||||
| Electrical and braking system | |||||||||
| Electrical system | 24 volt electrical system.LED lights, 7 pin electrical connector. Parking .Stop,reverse,number plate and indicator lights. Rear lights conform to European standard, rear front and side reflectors | ||||||||
| Braking system | 4 double and two single chambers T30/30 spring brake chamber 40L air tank and 7 ways Receptacle | ||||||||
| Paint (short and blasting ) | Chassis is comletely shor blasted to SA 2.5 grade, And painted with first layer of international Zinc Epoxy primer(30 Microns DEF), Second layer international high built polyurethane under coat(40 microns dft), Third and forth layers international alkyd finish top coat.Total 100 microns. Seawater proofed painting, whole trailer waxed, | ||||||||
| Power system(engine and air-compressor) | |||||||||
| Engine | Diesel engine,Weifang 4102 type | ||||||||
| Air-compressor | 12/2 doule cylinder | ||||||||
| Accessories | |||||||||
| Ladder | In left and rear position ,width>250 | ||||||||
| Spare tire support | 1 | ||||||||
| Walkway | Width>1700 | ||||||||
| Tool box | 1 | ||||||||
| Wheel guard | Out of steel | ||||||||
