CNC Flat Bed Lathe Machine (CK6130S - CK6140S)

Product Description

CNC lathe mahine
Flat bed CNC lathe machine
CNC lathe machine CK6140S
1) Ball leadscrews
2) Repeated positioning accuracy
3) Variable speed change fo spindle
CNC lathe machine CK6140S
This machine is a CNC lathe controllled by a microcomputer and driven by servo motors. It is suitable for turning cylindrical and taper faces, boring, grooving and cutting threads (including taper threads).
*The machine adopts ISO International Code, Keyboard Manual Date input, and it is also provided with program of power cut-off protection and the functions of automatic diagnosis and with RS232 interface.
*Longitudinal and cross feeds are effected by ball leadscrews driven by servo motors.
*Either vertical or horizontal 4 station or 6 station tool post or gang tools can be selected. The post is located on precision contrate gears with a high repeated positioning accuracy.
*Hydraulic chuck, manual chuck, manual tailstock and hydraulic tailstock are available for your choice.

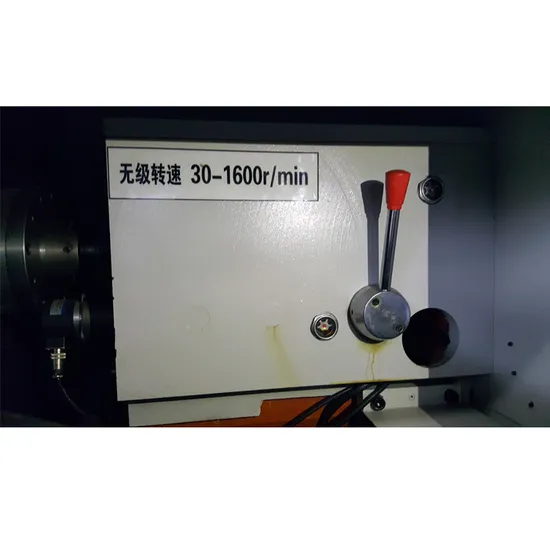

*Infinitely variable speed change for spindle.

ITEMS
				CK6140/1000		CK6140/750
MAX.SWING OVER BED DIA.			mm	Φ400		400
BED WIDTH			MM	400		300
X-AXIS GUIDE WAY SPAN			mm	180		180
Z-AXIS GUIDWAY SPAN			mm	400		300
MAX. SWING OVER CROSS SLIDE			mm	180		140
DISTANCE BETWEEN CENTERS			mm	1000		750
MAX. DISC DIA. PROCESSED						400
MAX TURNING LENGTH			mm	830(6) /700(8)		500(6,8)
CENTER HIGHER	TO BED WAY		mm	210		230
	TO FLOOR		mm	1020		1020
SPINDEL BORE DIA.			mm	/Φ82		48
BAR DIA.			mm	/Φ65		40
WITH CYLINDER THROUG SPINDLE			mm	/ Φ65		Φ40
				/A2-8		A2-6
LATHE CHUCK			mm	250MM/82DIA.SPIDLE		STANDARDΦ200/DIA.48,
SPINDLE TAPER			No	1:20(82 DIA.)		40"(DIA.48)
BAR THRONG DIA. AFTER 8 " HOLLOW CHUCK			mm	40DIA.
MAX. SPINDLE SPEED			rpm	/ 1600(82MM)	2000(48DIA. )
QUILL DIA.			mm	φ60	φ60
QUILL TAPER			No	MT5#	MT4#
QUILL TRAVEL			mm	120	120
TAILSTOCK TYPE				MANUAL OR HYDRAULIC
TURRET				4( OPTIONAL 6/8
SHANK SECTION			mm	20×20()
LEADSCREW MODEL		X	mm	FDC2506-P3		PDC2506-P3
		Z	mm	FDC4008-P3		FDC3210-P3
X/Z RAPID MOVING SPEED			m/min	6/8		6/8
X-AXIS TRAVEL			mm	220		220
Z-A-XIS TRAVEL			mm	1000		650
MIN. SETTING UNIT			mm	0.001		0.001
MAIN MOTOR POWRE			KW	5.5(OPTIONAL 7.5kw)		5.5(OPTIONAL 7.5kw)
TOTAL POWER			KW	11		11
TOTAL NET			Kg	2300
OVERAL DIMENSIONS			mm

---
