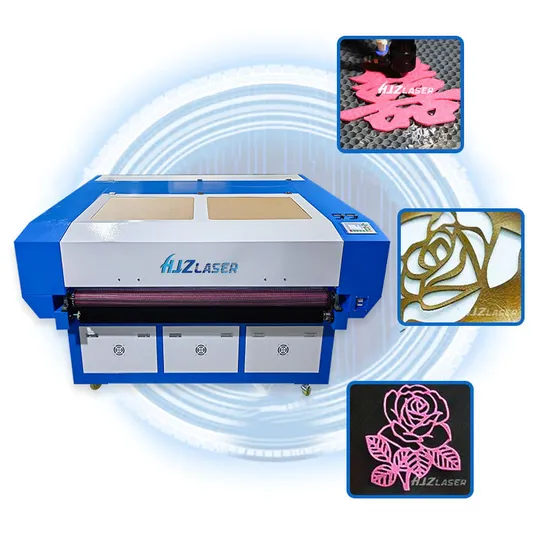

Laser Engraving Machine Wood Crystal Granite Photo CO2 Laser Cutting Machine Laser Engrave Machine Price CO2 Laser Cutting Machine 1390 Engraving Machine

Product Description

Laser Engraving Machine Wood Crystal Granite Photo CO2 Laser Cutting Machine Laser Engrave Machine Price CO2 Laser Cutting Machine 1390 Engraving Machine
1, Features:
1. To cater to larger material cutting in the co2 metal and nonmetal cutting industry, this machine adopts large and solid cast steel machine lathe, to make it more capable in material load-bearing, at the same time, let the machine operating stably during work.
2. With ball screw transmission on one side of it, this machine acquires high precision in metal cutting. Special up and down adjusting laser head, enables it processing well on uneven metal materials.
3. Imported Japanese servo motor, more powerful and stable compares with traditional china made servo motor, cooperating with the imported ball screw, this machine gets additional more precision and flexibility in cutting result than the ordinary model.
4. This machine can also be customized.

2, Details structure:
3, Technical parameters:

Model	HJZ-CO2-1610 1390 13250
Working area	1300mm*2500mm
Laser power	150w/ 180w / 280W
Cutting speed	0-50mm
Reposition accuracy	±0.05mm
Working voltage	AC110-220V ±10% 50HZ-60HZ
Laser head	professional laser head with the auto height contorl
Graphic format supported	PLT,BMP,DXF,AI,CDR,DST
Software compatibility	CorelDraw ,PhotoShop,AutoCAD
Y axis transimassion	ball screw with square linear guide rail
Driving system	Panasonic or Yaskawa servo mators
Laser tube cooling type	CW5000/CW6000
Other auxiliary equipment	Exhaust fans and air exhaust pipe
Working temperature	0ºC-45ºC
Operating humidity	8%-95%(without condensed water)
Laser control system	DSP control system
Laser tube type	co2 glass laser tube

Thickness 180w for choice	speed
1mm stainless steel	1800mm/min
1.5mm stainless steel	1000-1200mm/min
1mm carbon steel	1800mm/min
1.5mm carbon steel	1000-1200mm/min
10mm arcylic	400mm/min
20mm arcylic	90-200mm/min
5mm MDF	1000mm/min
10mm MDF	300mm/min
18mm MDF	90-150mm/min
