3-5t/H Wood Pellet Cooler in Stock

Product Description

Application
1. The counter flow cooling principle is adopted to cool the pellets with high temperature and moisture.
2.Hot air touches hot pellets and cool air touches cool pellets so as to avoid the pellet surface crack caused by sudden cooling produced by direct touching between cool air and hot pellets.
3.At the same time, the airlock is used for feeding and space of air inlet bigger, therefore it can get better cooling effects;
4. It is suitable for pellet cooling.
Main advandates
2. Slide reciprocating discharger has smooth and reliable discharging, low residue;
3. Low power consumption, easily operation;
4. Pellet temperature after cooling is less than +3°C~5°C ambient temperature;
counter-flow poultry feed pellet cooler 3-5t/h for complete feed pellet line

1. Brief Introduction
This Series fodder counterflow cooler is a kind of advanced coller equipment for granule materials, mainly equipped in feed production line,used for cooling the granular matrials produced from pelletr which contain centain mmoisture and higher temperature,drying and cooling ,meet the storage requirements.


2. Working Advantage of BSM counter-flow pellet cooler machine
1).The pellet feed is fully and evenly cooled with the counterflow cooling principle;
2).This counterflow cooler adopt unique sliding-valve discharging unit for stable running and smooth discharging;
3).Simple maintenance and convenient installation and arrangement;
4).After being cooled, the pellet tempcrature is about 3-5 degrees higher than the room temperature;
5).Adjusting easily and resulting in high automation degree It is widely used for cooling all kinds of peller feed.
6).Eight angular structures,cooling even, no deadangle.

3. Working Principle of BSM counter-flow pellet cooler machine

1).Pellets come from pelletizer need to be cooled down to keep a better strength.
2).The sieve will separate intact pellets from ash, which could be in recycling use.

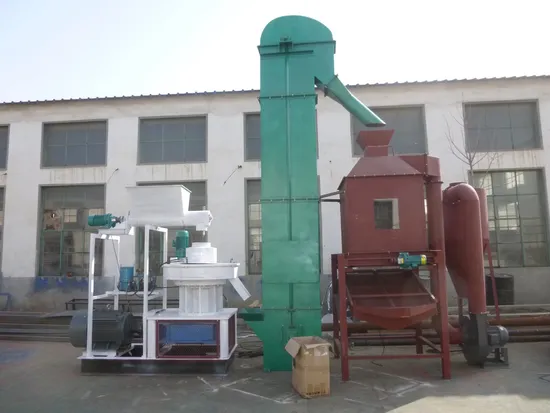

3).The complete cooling system includes cooler, cyclone, air lock, and cooling fan.
4).The ambient cooling-air flows vertically through the discharge-mechanism and the layer of pellets.
5).If retention time and cooling air-flow setting are optimal, outlet temperature of the pellets of 2-5ºC above the ambient temperature can be
achieved.

4. Advantages of BSM counterflow pellet cooler
1). Counterflow cooler has low air comsuption;
2).The temperature difference between pellets and cold air decreas to the minume;
3).The discharging system of counterflow cooler ensure pellets distribute uniform.
Do I have to go to your factory for atutorial of learing how to operate the machine?
It's not necessary. As 7/24 email and phone call service is available, I am ready to
answer your any specific questions regarding to our machinery and pellet mill in
particular. In addition, we prepare the teaching videos in terms of installation,
lubrication, trial running, parts replacements and so forth.
