CNC Drilling Machine for Steel Plates

Product Description

Product parameters

Name	Detail
Size of work piece	Thickness	Max.100mm
	Width ×length	2000mm×1200mm one piece
		1200mm×1000mm two pieces
		1000mm×600mm four pieces
Axis	Quick change chuck	Morse Taper 3# 4#
	Diameter of Drilling head	Φ12mm-Φ50mm
	Variable speed mode	Stepless speed adjustment
	rotation speed	120-560r/min
	max. feeding stoke	240mm
	Feeding	Hydraulic Stepless speed adjustment
Clamping	Clamping thickness	15-100mm
	Number of clamps	12 pieces
	Clamping force	7.5KN
	Clamping start	Foot switch
Cooling water	Type	Forced circulation
Hydraulic	clamping	6MPa(60kgf/cm2)
	Volume	100L
Air force	Air supply	0.4MPa(4kgf/cm2)
Servo Motor	Axis	5.5KW
	Hydraulic pump	2.2KW
	Servo motor of chip removal device	0.4KW
	Cooling pump	0.25KW
	Servo motor of X axis	1.5KW
	Servo motor of Y axis	1.0KW
	Servo motor of Z axis	1.0kW
Size	L×W×H	About 3160×3975×2377mm
Weight	Machine	4800kg
	Chip removal system	400kg
Stroke	X Axis	2000mm
	Y Axis	1200mm
Postioning speed	Max. 10000mm/min

Working temperature: 0ºC ~ 40ºC
Working humidity: ≤75%
Power: Three phase four wire system
AC Voltage: 380V
Fluctuation of voltage: ±10%
Frequency: 50 Hz±1HZ

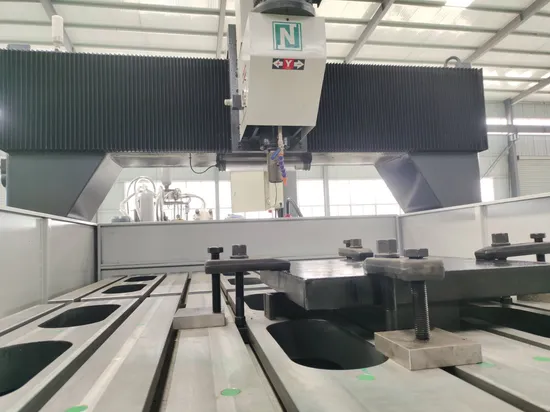

Product display
Other products
Certifications
Company information
Our service
Pre-sale Service
1. We have full stock, and can deliver within short time. Many styles for you to choose.
2. OEM and ODM order are accepted
3. Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you
4. All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
5. We have rich experience of design, manufacture and sell hardware products, we cherish every order from our honor.
After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-7 working day after your payment,
3. Email you the tracking no, and help to chase the parcels until it arrive you.
After-sale service
1. We are very glad that customer give us some suggestion for price and products.
2. If any question, please contact with us freely by E-mail or Telephone.
Packaging&shipping
FAQ:
Q: How can I get a quotation?
A: Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephon
Q: When can you arrange shippment?
A: We usually arrange shippment in 10-30days
Q: Can you provide training for operation CNC machines?
A: Yes, free training in our factory is available.
Q: What you can do if my machines have problems?
A: a.We can send you free components to you if your machines are in guarantee time.
b.We can send our engineers to repair your machines
Q: How about your price?
A: Send me details about what you need, you will get the best price in China. The price is competitive over the world.
Q: What's your warranty terms?
A: We will supply a replacement for parts that prove to be defective for a period of 18 months, starting on the machine's bill of lading date. Extended warranty is available at the time of purchase. Please contact your Z-MaT sales representative for details .
Q: What's the delivery time, and what's the package?
A: Normally the delivery time is about 30-45 days. All our CNC machines are packed with sea worthy package.

---
