CNC Universal Horizontal Knee-Type Milling Machine Xk6040/Xk6032

Product Description

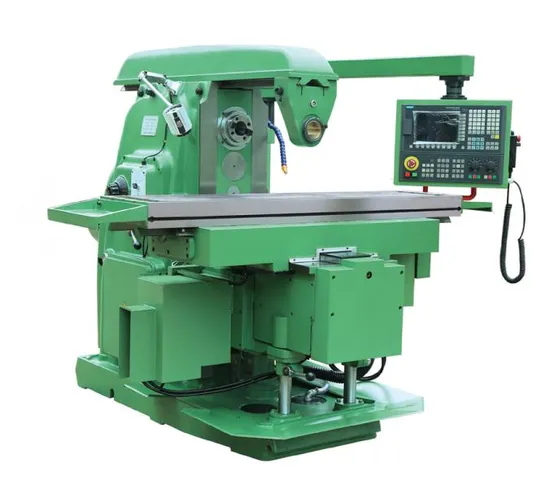

CNC Horizontal Knee-Type Milling Machine XK6040/XK6032
Specification:

Model No.	XK6040	XK6032
Item No.
Specifications
Table size	1700x400 mm	1600x320 mm
T slots ( NW/D)	3/18/90 mm	3/18/70 mm
Longitudinal travel	1000 mm	900 mm
Cross travel	350 mm	310 mm
Vertical travel	360 mm	410 mm
Table longitudinal feed ( auto )	6-3200 mm/min	6-3200 mm/min
Table cross feed ( auto )	6-3200 mm/min	6-3200 mm/min
Table vertical feed ( auto )	3-1600 mm/min	3-1600 mm/min
Distance between spindle and table surface	20-380 mm	55-465 mm
Distance from spindle and table surface	155 mm	155 mm
Spindle
Spindle hole taper	ISO 50(7:24)	ISO 50(7:24)
Spindle speed step	18 step	18 step
Spindle speed range	30-1500 r/min	30-1500 r/min
Power of spindle motor	11 kw	7.5 kw
Torque of X /Y / Z axis AC servo motor	15/15/23 N.m	10/10/18 N.m
Dimension of package
Overall size	2550x2160x1800 mm	2040x1800x1800 mm
Net weight	3650 kg	2650 kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
