Professional Metal Milling CNC Machinery for Steel Iron

Product Description

Professional metal milling cnc machinery for steel iron
1. Machine Introduction

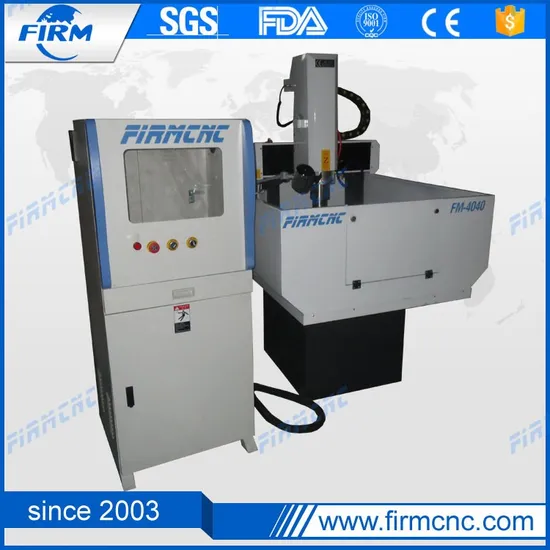

This machine is from Jinan Firm CNC Equipment Co., Ltd.It is a type of metal moulding engraving machine.
This kind of machine is specially developed for metal cutting engraving,working size can be customized upon
requirements, this cnc metal engracing machine is characterized of easy operation,compact structure and low cost.
2.Features:
1.The machine body structure adopt cast iron, the rigidity is good, not easy to be deformed, to make sure the machine's stability.
2.Well compatibility: compatible for software CAD/CAM, such as type3/artcam/JDPaint/proe/ug.rtc
3.Original NC Studio control system .
4.Heavy loading, non-deformation, adopting imported double nut screw to ensure the engraving speed.
Adopting Taiwan's high-precision square linear guide, effectively imported the precision of carving.
5.Adopt high-speed water cooling motor with invariably power, big torque,strong cutting, high-frequency and long-life.
6.Available for continuous work for a long time.

3. Technical Data:

Performance index	FM4040 metal engraving machine
X,Y working area	400×400mm
Z working area	200mm
Table size	520×520mm
Max travel speed	4m-5.5m/min
Max engraving speed	2m-3m/min
Resolution ratio	0.001mm
Repositioning precision	0.01mm
Max feeding heigh	200mm
Command	G Code *.mmg*.plt
Surroundings for software	windows98/2000/xp
Power	AC380V/50Hz
Main axle power rate	1.5kw Constant Water Cooling Spindle
Spindle speed	0-24000rpm/min
Work Mode	Servo motors

4. Applications:
Widely used in advertising industry, solid wooden, archaize furniture carving, musical insturment making, light box & mould, aluminum composite board processing, seal , metal scutcheon, bronzing board,carbon plate in battery, copper stamp, aluminum, oxhorn, printer's blankey,arcylic, double color board, PVC, ABS,MDF,PCB , plastic board, wave board and other metal or non-metal materials,etc.
5. Packing & Shipping:
Water-proof plastic film package with foam protection in each corner.
Solid Seaworthy Wood Box Package with Steel Belt.
Save space as much as possible for container loading.
6. After sale:
1) We would provide English Version working manual.
2) If you have any questions during using and maintaining, our engineers who
could speak very good English would answer you online or by calls.
3) Machine warranty is one year. So if your machine has any unintentional
damages, we would provide parts for free.
4) If your machine has big problems if by any chance, our engineers would arrive there to debug and fix.
5) Could be remote control if needed.

---
