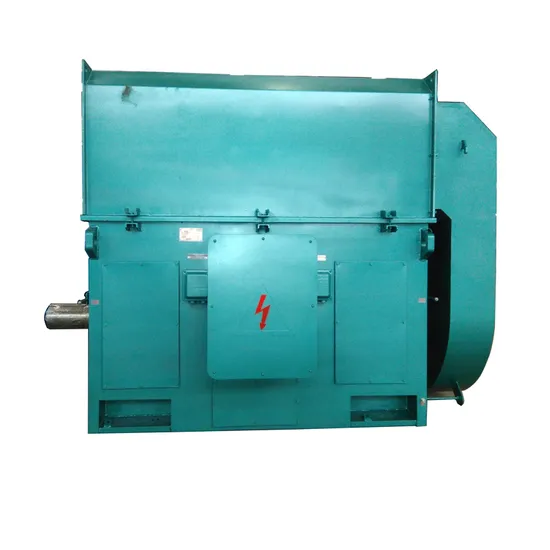

6kv/10kv Ykk Series 3-Phase High-Voltage Air-Air Cooling Motor

Product Description

The three phase high voltage motor is squirrel-cage three-phase asynchronous power. This type of motor meets the requirements of IEC standards. The motor has compact structure, light weight, high efficiency, energy saving, low noise, low vibration, high reliability, long service life, convenient installation and maintenance, etc. Features.
Three phase high voltage asynchronous motors are widely used in various ventilators, water pump crushers, compressors, machine tools, transportation machinery and other mechanical equipment without special requirements. It is an important source of power for mining, electromechanical, petroleum, chemical, power station and other industrial and mining enterprises.
The three phase high voltage motor adopts Class F insulation and has good temperature resistance. This series of motors can also be made into wet tropical type, dry tropical type, outdoor type and outdoor anti-corrosive type and outdoor wet tropical type. The rotor adopts a squirrel cage structure, which is dynamically balanced by high-precision verification. The motor runs smoothly and the vibration is small. The motor is provided with a cylindrical shaft extension. It can also be made into a double shaft extension according to the user's needs.
Center height range: H355 ~ 900mm
Power range: 185kW ~ 8000kW
Number of poles: 2/4/6/8/10/12
Rated voltage: 6000V/66000V
Rated frequency: 50HZ/60HZ
Protection level: IP54 or IP55
Insulation class: F
Work system: S1 (continuous)
Cooling method: IC611/IC616
Installation form: IMB3
Motor connection: Y (three outlet terminals in the junction box, the junction box from the extension of the spindle is located on the right side of the base)
Conditions of Use:
1. The altitude does not exceed 1000 meters.
2, the highest ambient air temperature, no more than 40 ° ° C.
3. Minimum ambient air temperature: -15 °C for motors with rolling bearings, 0 °C for motors with plain bearings, or according to agreement.
4. The monthly average maximum relative humidity of the warmest month is 90%, and the monthly average minimum temperature of the month is not higher than 25 °C.
The three phase high voltage motor has the characteristics of compact structure, light weight, high efficiency, energy saving, low noise, low vibration, high reliability, long service life and convenient installation and maintenance. This type of motor is versatile and versatile, driving a wide range of mechanical equipment.
Main process flow of the motor
Motor stator: casing processing → punching press → iron core seating → coil making → weaving → dipping paint drying
Electronic rotor: blank shaft processing → iron core press installation → iron core cast aluminum → rotor string shaft → weave → dipping paint drying → dynamic balance
Motor assembly: stator rotor assembly → machine test → motor appearance coloring → packaging storage
1. The outer packaging of the products are all standard export-oriented wooden plywood packaging.
2, the product packaging is protected by moisture, water plastic soft packaging
3. For products with special transportation requirements (such as temperature, fragile, variability, and easy to get wet), the packaging protection measures will be strengthened, and the target mark will be printed on the package.
4. There are obvious signs and symbols on the packing box that must be paid attention to during transportation and storage (such as position, moisture, rain, shockproof, lifting position, etc.).
The company insists on providing high-quality motor products and services to users, and has won high praise from many domestic and foreign customers. The company will receive many foreign merchants to visit our factory every year, and establish a good cooperative relationship through on-site inspection of our factory. Our company always welcomes customers to visit our factory.

---
