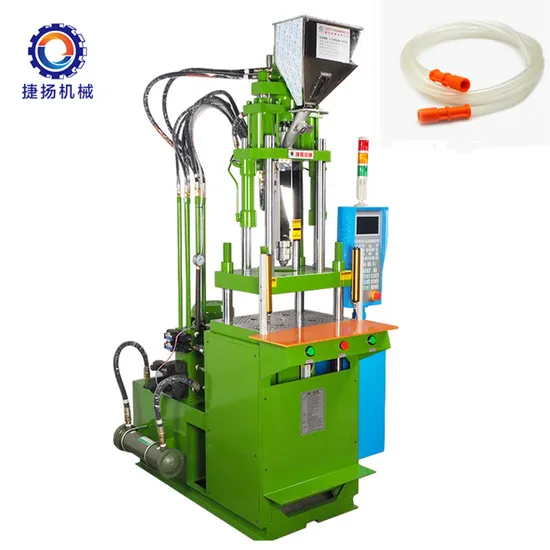

Oxygen Tube Injection Machine Vertical Injection Moulding Machine for Making Oxygen Cathete

Product Description

Oxygen Tube injection machine Vertical Injection Moulding Machine for making oxygen cathete
Function:
1. Vertical direct hydraulic clamping system is designed for accurate, safe operation, especially suitable for insert molding.With double slide table or rotary design, put-in, take-out products and molding finish at the same time, which is more safe and efficient for production , then reduce the cost of production.
2. High precision mold platen ( Parralelism/ flatness : 0.01/100mm), heavy-duty tie-bars, and low-pressure mold clamping work together to greatly extend
machine & mold life.
3. Nitride and NIP/ Nitroflon coated screws and barrels are longlasting, robust and provide superior acid/alkaline resistance.Heavyduty double cylinder injection unit is maintenance friendly and free of oil leaks.
4. All series adapted Variable pump +PQ valves enable energy savings of 30~50%.
5. Proportional hydraulic control system provides low noise, low energy consumption, and smooth machine movements with durable life.
Parameter of Machine:

JY-350ST Technique specification
Model		Units	JY-350ST
Injection System	Screw Diameter	mm	Φ28	Φ30
	Injection Pressure	Kgf/cm2	1219	1062
	Theoretical Shot volume	cm3	76.93	88.3
	Max. Shot Weight(P.S)	g/Oz	72.7/2.56	83.5/2.94
	Injection Rate	cm3/s	60.3	69.2
	Max.Screw speed	rpm	0-190
	Temperature Control	ZONE	2
Clamping System	Clamping Force	T	35
	Platen Size	mm	490*325
	Distance Between Tie Bare	mm	370*205
	Min Mold Height	mm	80/180
	Opening Stroke	mm	180
	Max. Open Daylight	mm	260/360
	Ejector Force	T	1.3
	Ejector stroke	mm	25
Hydraulic System	Max. Hydraulic Pressure	Kg/cm2	140
	Pump Motor Power	Kw	4
	Barrel Heating Power	Kw	2.8
	Total Wattage	Kw	6.8
Others	Machine Dimensions (L*W*H)	m	1.48*1.07*2.15
	Machine Weight	T	1

Key Parts List
Part Name	Brand	Original of Country	Features
Computer	Star Denshi	Japan	High Precise Control, sensitive response, TFT Color display
Servo Motor	YASKAWA	Japan	Energy Saving
Electromagnetic valve/ solenoid valve	Yuken	Japan	High sensitive response
hydraulic valve	HSUTIEN	Taiwan	Longer span life
Material Cylinder	Tan Star	Taiwan	Antia brasive corrosion resistance Longer span life
Electronic parts	Schneider Fuji Fotek	France/Japan/Taiwan	Stable High sensitive
hydraulic Motor	White	USA	Low noise
Servo Pump	Eckerle	Germany	Low noise
Electrical Ruler	Gefran	Italy	High Precise Control
Tiebar	Genaral	Taiwan	High hardness
Seal	HALLITE	UK	Longer span life
Proportional rejection valve	Yuken	Japan	High Precise Control Longer span life
Oil Cylinder	Lianhuei	Taiwan	Antia brasive

Machines Details:

Application :
Vertical injection machine have the advantage of low-noise, low-energy-consumption,high efficiency and long life time.

Q1: Are you a trading company or a manufacturer?

A1: Factory we are, all the machine are made by ourselves. Besides, you can get the customize service with your requirements

Q2: What's your warranty for the machine?

A2: One Year Warranty(all the machine parts can be replaced within one year free of charge, not including the manmade broke), life-time maintenance.

Q3: What's your Delivery Time?

A3: Usually it is 3-5 days if the machine is in stock; If not, the delivery time is 10-25 days according to your required quantity and our busy season.

Q4: Where is your factory? How can visit you?

A4: Our factory is next to Guangzhou and Shenzhen. We will drive you to our factory by car when you arrive at Dongguan or Changping Railway(Bus) station.

Q5: Why choose Jieyang Machinery Co., Ltd.?

A5: "Customer Satisfaction, Continual Improvement & Innovative Service" are the driving force for our company to moving forwards. We will devote every efforts to do the best level machine and service.

Welcome to inquiry us !

---
