US$100,000.00-1,500,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Application Area
Chemical
Rotors
Tangential/ Intermeshing/Customized
Place of Origin
Jiangsu, China (Mainland)
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Main Motor Power
90-2500kw
Operating type
Cycle Operating
Specification
ISO9001: 2000
Production Capacity
50 Sets/Year
Product Description

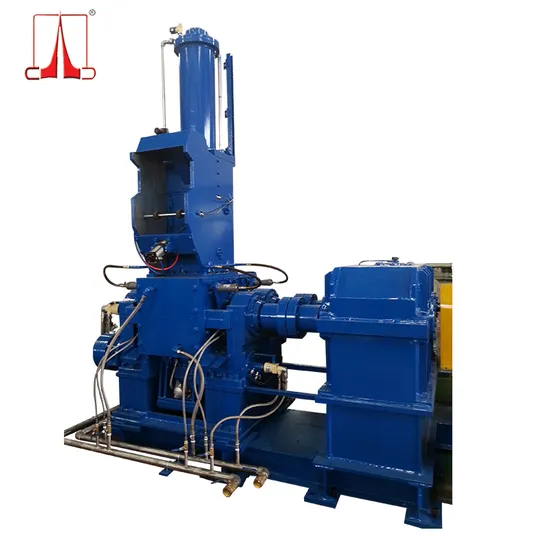

75L Banbury Mixer
Rubber and Plastic
Application of Our Banbury Mixer It's suitable for plastic and rubber mixing. The mixing chamber adopts special left-middle-right structure which makes maintenance easy.
Advantages of Banbury mixer:
1. Intermeshing or tangential rotor;
2. Rotors, mixing chamber, harmmer and parts which contacts with the material are overlayed with 5mm wear-resistant alloy (up to 50HRC);
3. Pneumatic / hydraulic type top mounted hammer;
4. Inverted AC motor / variable speed DC motor;
5. Copper-ring and hydraulic sealing;
6. 2-wing, 4-wing, 6-wing are available;
7. Excellent dispersing effect;
8. Best mixing rotor and chamber to guarantee 100% mixing effect;
9. Low noise, safe mixing;
10. Maintenance friendly and long-life service
1. Banbury mixer for rubber:
Items
| LX-75L
| LX-100L
| LX-120L
| LX-160L
| LX-190L
| LX-255L
| LX-270L
| LX-410L
|
Total chamber volume(L)
| 75
| 100
| 120
| 160
| 190
| 255
| 270
| 410
|
Useful chamber volume (L)
| 50
| 80
| 100
| 120
| 140
| 115
| 188
| 319
|
The main rotor speed(rpm)
| 40
| 40
| 40
| 40
| 40
| 4-40
6-60
| 4~40
| 6~60
|
The rotor speed ratio
| 1:1.17
| 1:1.17
| 1:1.17
| 1:1.17
| 1:1.17
| 1:1.17
| 1:1.17
| 1:1.17
|
Max capacity (T/H)
| 1.25
| 1.6
| 1.95
| 2.64
| 2.85
| 4.6
| 4.6
| 7.4
|
Motor power (KW)
| 160
| 220
| 310
| 355
| 870
| 1500
| 1250
| 2X1250
|
Weight(T)
| 20
| 24
| 26
| 26
| 30
| 55
| 55
| 76
|
2. Banbury mixer for plastic:
Project\Model
| S-75L
| S-100L
| S-120L
| S-160L
| S-255L
| S-270L
| S-410L
|
Working capacity of mixing chamber(L)
| 75
| 100
| 120
| 160
| 255
| 270
| 410
|
Rotating speed of rear rotor(r/min)
| 40
| 40
| 40
| 40
| 40
| 40
| 40
|
Main motor power(kw)
| 160
| 220
| 300
| 400
| 1100
| 1250
| 2500
|
Pressed of compressed air(MPa)
| 0.6
| 0.6
| 0.6
| 0.6
| 0.58
| 0.58
| 0.62
|
Weight(t)
| 20
| 22
| 28
| 32
| 55
| 60
| 76
|
Intermesh Rotors (high mixing effects)
Model
| LH-100Y
| LH-145Y
| LH-200Y
| LH-250Y
| LH-330Y
|
Chamber Volume (L)
| 100
| 145
| 200
| 250
| 330
|
Filling Coefficient
| 0.65
|
Rotor Speed (r/min)
| 10-60
|
Rotor Speed Ratio
| 1:1.17
|
Max. Capacity (T/H)
| 1.36
| 2.2
| 3.05
| 4.2
| 5.0
|
Motor Power (Kw)
| 520
| 720
| 1100
| 1320
| 1700
|
Dimension (m)
| 6.6x2.8x4.4
| 7.5x3.1x5.5
| 8.1x3.5x5.4
| 8.2x3.8x5.5
| 10.0x4.7x6.6
|
Weight (T)
| 19
| 29
| 48
| 65
| 80
|
>>
