Factory Direct Automatic Tin Foil Cutter Jumbo Roll Aluminum Foil Baking Paper Kraft Paper Insulation Foil Cutting Slitting Rewinding Making Machine Rewinder

US$19,000.00
1-2 Sets
US$15,000.00
3+ Sets

Basic Info.

Model NO.
HSS-450
Application
Machinery&Hardware, Food, Commodity, Kitchen
Type
High Speed Rewinding Machine
Work Method
Flat Knife Slitting
Structure
Cutting Part
Packaging
Case
Classification
High Speed Rewinding Machine
Applicable Process
Final Inspection
Suitable Substrates
Aluminum Foil, Baking Paper, Silicon Paper
Packaging Material
Box
Hotmelt Glue
Yes
Auto Label
Yes
Power
7.5kw
Voltage
3p, 380V
Frequency
20A, 50Hz
Certificate
CE
PLC
Siemens Germany
Servo Motor
Delta
Touch Screen
Weinview
Tension Control
Auto
Transport Package
Wooden Case
Specification
245*176*182cm
Trademark
Horsen
Origin
China
HS Code
8477800000
Production Capacity
30sets/Month

Packaging & Delivery

Package Size
245.00cm * 176.00cm * 182.00cm
Package Gross Weight
1600.000kg

Product Description

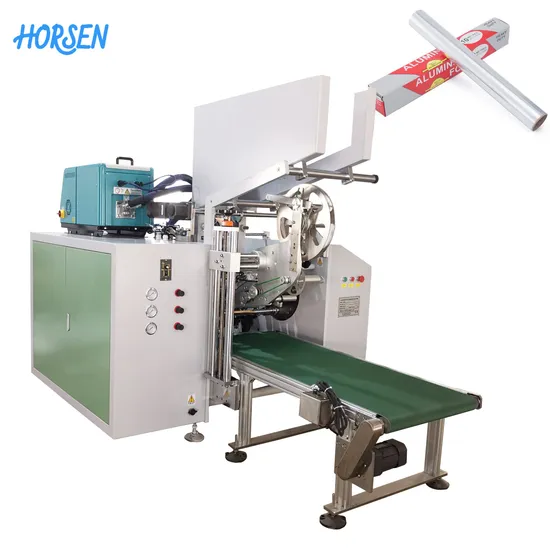

AUTOMATIC ALUMINUM FOIL REWINDER WITH AUTO LABEL& HOTMELT GLUE was used for rewind from jumbo roll to small roll, which widely used for kitchen foil.
Specification
Item Aluminum foil rewinding machine
Rewinding Material Aluminum foil, baking paper, silicon paper, plastic bag
Width of material 260-450mm
Width of products 260-450MM
Diameter of un-winder roll(Max) Ф700mm
Diameter of re-winder roll(Max) Ф90mm
Core size of un-winder 3'' or 6"
Core size of re-winder 30mm,35mm or 38mm (customized available)
Rewinding speed 550m/min
Thickness of material 0.009-0.025mm
Productivity 20-40pcs/min
Main motor 4kw
Air pressure ≥ 0.4Mpa
Sticker motor Servo
Invertor Delta
PLC SIEMENS GERMANY
Touch screen WEINVIEW
Hotmelt glue machine China brand
Unwind and rewind tension Automatic tension
Weight 1600kg
Packing Type wooden case
Packing Size 245*176*182cm

We accept OEM, if you have special requirement, please feel free to contact, looking forward to establish long business relationship with you.
