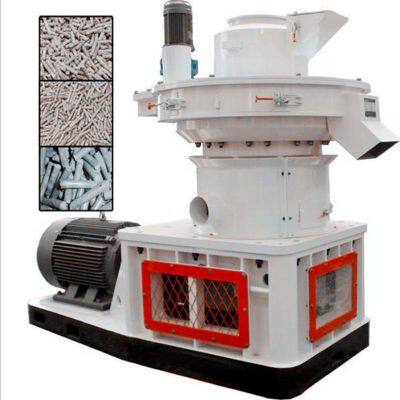

Ring Die Pellet Mill

Product Details

Product Description

Product Description
The designed output of the ring die pellet mill is 700-4500 kg/h. It is typically used to process materials like rice husks, sunflower seed shells, peanut shells, sawdust, wood shavings, wood waste, crop stalks, and other combustible biomass materials. The pellets produced from these materials can be used as efficient fuel and are widely applied in industries such as fuel production, fertilizer plants, chemical plants, and boilers and other industry areas.
Working PrincipleThe machine works by pressing materials through small holes in the die to form pellets. The motor drives the gearbox, which turns the main shaft. The main shaft makes the rollers spin and press the material into the die holes, shaping it into pellets.
Difference Between Flat Die Pellet Mill and Ring Die Pellet MillIn short to say, ring die pellet mill works by using rotating rollers to press materials into pellets. And the flat die pellet mill relies on a rotating die to press out pellets.
Both types can produce high quality pellets, but they are designed for different needs. Flat die pellet mills are compact, easy to move, making them ideal for small businesses or home use. Ring die pellet mills offer higher output, better pellet quality, and smarter designs, generally they come with higher costs, so they are better suited for industrial applications.
Outstanding Features of the Pellet MillHigh Output: Production capacity can reach 700-4500 kg/h.
High Pellet Quality: The finished pellets have a high density and excellent combustion performance.
Adjustable Pellet Size: The pellet size ranges from 4-12mm and can be adjusted according to specific needs.
Comprehensive Material Processing: In addition to commonly processed materials, the machine can also handle difficult to bond and hard to shape materials.
High Material Utilization: Maximizes the use of raw materials, with minimal waste.
Durability: Built with high-quality alloy steel rollers and dies, ensuring long lasting, reliable operation.
Cost effective: Manufactured in China, we offer competitive prices with high quality.

Ring Die Pellet Mill Parameters
Model	Power (kw)	Capacity（t/h）	Weight(kg)	Pellet Size (mm)	Die Diameter(mm)
KH450	55	0.7-1	4	4-12	450
KH560	90	1-1.5	6.5	4-12	560
KH680	160	1.5-2.5	8.5	4-12	680
KH850	220	2-3.5	12.6	4-12	850
KH880	315	3.5-4.5	14.5	4-12	880

Note： Die diameter refers to the internal measurement of the ring die in a pellet mill. This diameter affects the pellet mill's size, capacity, and the efficiency of material compression and pellet production.

---
