AT31 Motorized Focusing Thermal Camera

Product Details

Product Description

Product Description

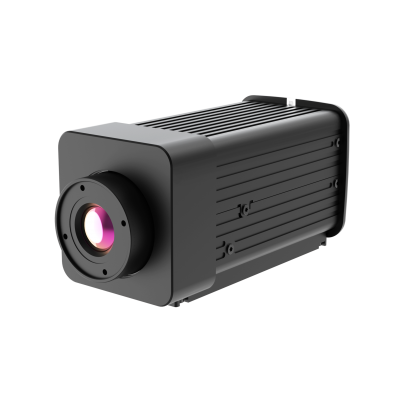

AT31 Motorized Focusing Thermal Camera
AT31 is a high-performance and high-precision electrically adjustable temperature measurement thermal imager that uses a uncooled focal plane detector and offers multiple lens options.
Supporting multiple protocols such as RTSP and ONVIF, equipped with professional application software and universal SDK development package.
It is ideal choices for fields such as electronic circuits, education and research, and industrial automation.
Feature
High-Quality Image Output
AT31 can accurately transmit on-site temperature data. Its electric focusing lens design enables the observations of multiple depth-of-field targets using the same lens, thus providing more accurate temperature measurements.
The device can output high-quality infrared images with a resolution of 384×288, supporting rapid temperature data analysis and determination.
High-speed Frame Rate and Real-time Data Transmission
With an image and temperature frame rate of up to 50Hz, AT31 can capture temperature changes at a very high speed. It is very suitable for applications requiring real-time monitoring of temperature changes. Equipped with a Gigabit network interface, the device also supports real-time transmission of on-site status temperature data, allowing for image monitoring and temperature data analysis at anytime.
Wide Measurement Range and Temperature Compensation Algorithm
With a wide measurement range from -20°C to +550°C, ATR31 is suitable for industrial scenarios with various high-temperature requirements. The device utilizes a temperature compensation algorithm to adjust for environmental factors and ensure measurement accuracy and reliability.
Specification
Thermal Imaging ParametersTemperature Measurement FunctionImage and VideoSystem InterfaceDevice Specifications

DetectorUncooled VOx detectorInfrared Resolution384×288Pixel pitch17μmSpectral Band8μm~14μmThermal Sensitivity (NETD)
Measurement Range-20℃~+150℃,0℃~550℃Measurement Accuracy±2°C or ±2% of readings, whichever is greater.Temperature Measurement CorrectionReflected temperature, ambient temperature, atmospheric transmissivity, object emissivity, distanceMeasurement ToolSettings of measurement rules for a total of 12 points, lines, and areas Supports isotherm settingTemperature Width StretchSupport temperature width stretch
Frame Rate50HzPalettes18 color palettes including black-hot, white-hot, iron red, rainbow, etc.Video StandardsH.264, H.265Thermal Image CaptureSupport thermal image capture and secondary analysisMirror ImageHorizontal/Vertical/DiagonalDigital Zoom1.0~8.0 continuous zoom (step size: 0.1)
Communication interfaceRJ45，supporting Gigabit network and customized RS485 for Pecol-D protocol.Video Interface1-channel analog videoAlarm Interface1-channel alarm output (optional)Network ProtocolTCP, UDP, ICMP, DHCP, RTSPInterface ProtocolONVIF, GB28181
Operating Temperature-20℃~+60℃Power supply mode10~36V DC, POETypical Power Consumption3WDimensions56mm×51mm×119mmWeightAbout 430g

Application Scenarios

Education and Research

Industrial Manufacturing

Machine Vision

Power Monitoring
