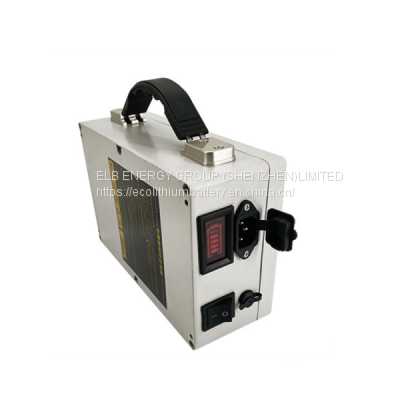

48V 12Ah Battery

Product Details

Product Description

Product Description
According to customer’s rquirement, this 48V 12Ah Battery are packed with 13S6P 18650 2000mAh cells. ELB Energy Group is a customized battery solution manufacturer, welcome to have a consultation about the Ebike battery.

ELECTRICAL SPECIFICATION
Nominal Voltage	48V
Nominal Capacity	12AH
Stored Energy	720Wh
Self Discharge Rate		Maximum Continous Charge Current	10A
Maximum Continous Discharge Current	30A
Charge Cut-off Voltage	54.6V
Discharge Cut-off Voltage	36V
Cycle life(25°C)	>1000 times@80%DOD

MECHANICAL SPECIFICATIONS
Dimensions (mm)	L250×W200×H100
Weight	5kg around
Case Material	SS
Enclosure protection	IP54

Check details in ELB certification center.The Certification that ELB Got:
ELB Battery certification

---
