P3/P4/P5/P6/P8/P10 Outdoor Front Service LED Panel

Product Description

Front open cabinet LED Display


Fix installation LED Display Screen cabinet view
P8 Outdoor LED Screen detail specification
Function and Technology Character
(1) Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
(2) Information source can be camera, video, VCD, DVD, LD, TV and so on.
(3) Clear picture without flicker and distortion.
(4) Brightness, contrast, saturation can be adjust by itself and manual.
(5) Show everything with your PC does synchronously.
(6) Super correcting technology for distortion.
(7) One interface for sound signal and two for video signal at least.
(8) Connected and controlled by PC via LAN and remote control.
(9) Multiform language editions, such as English, French, Germany, Greek, Russian and so on.

Specifications	P2.5	P3	P4	P5	P6	P8	P10
Module size(mm)	192×192	192×192	320×160	320×160	192×192	320×160	320×160
Module resolution (dot)	64×64	64×64	80×40	64×32	32×32	40×20	32×16
Scanning	1/16S	1/16S	1/20S	1/8S	1/8S	1/5S	1/2S
SMD	1G1R1B	1G1R1B	1G1R1B	1G1R1B	1G1R1B	1G1R1B	1G1R1B
Maintenance	Back	Back	Back	Back	Back	Back	Back
Installation	Back	Back	Back	Back	Back	Back	Back
Cabinet size(mm)	960×960	960×960	960×960	960×960	960×960	960×960	960×960
Density(dot/)	16000000.00%	11111100.00%	6250000.00%	4000000.00%	2777700.00%	1562500.00%	1000000.00%
Brightness(cd/)	4200-4500	4200-4500	5000-6500	5000-6000	5000-6000	4000-5000	6000-7500
Max. Power Consumption	100000.00%	100000.00%	90000.00%	80000.00%	80000.00%	80000.00%	100000.00%
Average Power Consumption	35000.00%	35000.00%	30000.00%	40000.00%	30000.00%	30000.00%	50000.00%
Cabinet weight (kg/m²)	40kg	40kg	40kg	40kg	40kg	40kg	40kg
Cabinet material	Iron	Iron	Iron	Iron	Iron	Iron	Iron
IP rate	IP 65	IP 65	IP 65	IP 65	IP 65	IP 65	IP 65
Grayscale	10000:1	10000:1	10000:1	10000:1	10000:1	10000:1	10000:1
Refresh rate(hz)	1920-3840	1920-3840	1920-3840	1920-3840	1920-3840	1920-3840	1920-3840
Frame change frequency	50/60hz	50/60hz	50/60hz	50/60hz	50/60hz	50/60hz	50/60hz
Horizontal viewing angle	>140°	>140°	>140°	>140°	>140°	>140°	>140°
Vertical viewing angle	>140°	>140°	>140°	>140°	>140°	>140°	>140°
Best viewing distance	>2.5m	>3m	>4m	>5m	>6m	>8m	>10m
Input Voltage	AC110V - AC220V	AC110V - AC220V	AC110V - AC220V	AC110V - AC220V	AC110V - AC220V	AC110V - AC220V	AC110V - AC220V
Module Max. current	4.5-5.5	4.5-5.5	5.5-7.5	5.5-7.5	3.5-5.5	5.5-7.0	8.0-10
Temperature-operating	-10ºC~60ºC	-10ºC~60ºC	-10ºC~60ºC	-10ºC~60ºC	-10ºC~60ºC	-10ºC~60ºC	-10ºC~60ºC
Humidity-operating	10%~90%	10%~90%	10%~90%	10%~90%	10%~90%	10%~90%	10%~90%
Life span (H)	≥100,000	≥100,000	≥100,000	≥100,000	≥100,000	≥100,000	≥100,000
MTBF (H)	>10,000	>10,000	>10,000	>10,000	>10,000	>10,000	>10,000

LED Screen Project ;

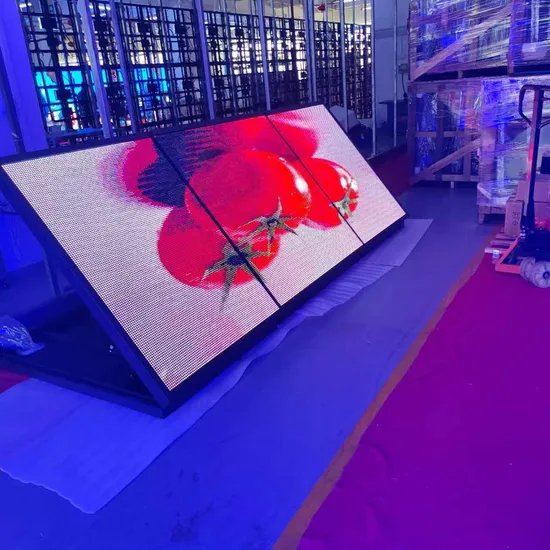

Front service led display in the factory assemble and testing picture
The detail structure

---
