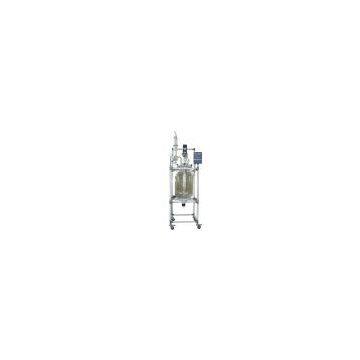

Product Details
Product Description
Product Description
Features:
<1>.Patented product
<2>.Excellent sealing performance Unique patented design seal groove.Ultimate vacuum reaches pump vacuum+133Pa,better than other ordinary ones
<3>.Converting-frequency speed,bidirectional stir,digital display.
<4>.GG17 high quality silicon glass owns good chemical-physical attribute.
<5>Multi-mouth,large diameter,rich functions and optional parts available.
<6>.Simple and safe cleaning job without disassembling all accessories.PTFE no-dead angle bottom discharge value,anti-corrosion
<7>Stainless, and mobile frame ,stability, easy to move.
<8>.Used with vacuum pump and heating or cooling liquid circulation pump.
<9>.Now 8 sets in Chinese Acodemy of Sciences Shanghai Institute of Organic,3 sets in Tianjing Tianshili Pharmaceutical Company ect.
Technical Parameters:
Model
| TFD-50L
|
Volume(L)
| 50L
|
Glassware Material
| Borosilicate (Pyrex: G3.3)
|
Frame Material
| SUS304
|
Diameter of Vessel Lid (mm)
| 180 mm
|
Mouth Amount of Vessel Lid
| 5
|
Stirring Power (w)
| 370 w
|
Speed Adjustment
| Electronic Stepless
|
Rotary Speed (rpm)
| 50 ~ 1200
|
Reaction Temperature Range (°C)
| -50 ~200°C
|
Thermometer Type
| Thermometer
|
Seal Type
| Ceramic Mechanical
|
Reachable Vacuum Level (Mpa)
| ≥ 0.098MPa
|
Stirring Head Type
| Arc
|
Material Of Stirring Bar
| Stainless Steel & PTFE Sleeve
|
Condenser Type & Area (sqm)
| Vertical (0.30)
|
Continuous Charge Funnel
| Yes
|
PTFE Graduated Charge Valve
| Yes
|
Discharge Valve
| PTFE Propel (Teflon)
|
Discharger Position
| Bottom
|
Dimensions (cm)
| 40*50*110
|
Power
| 220V/5A
|
Extra Component (Optional)
| Epoxy Painting
|
Extra Component II (Optional)
| Explosion (Flame) Proof
|
>>
