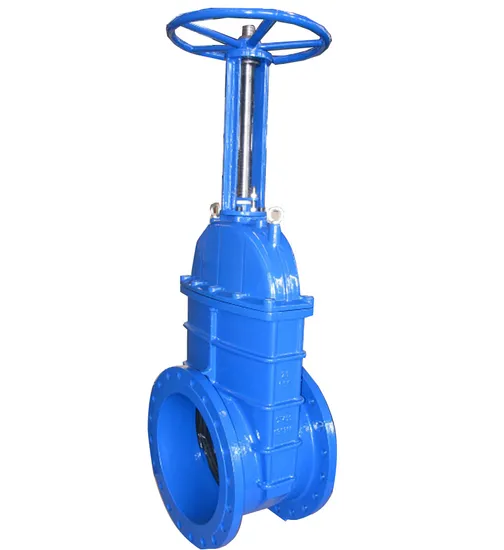

BS5163 Standard EPDM Soft Seal Rising Stem Gate Valve

Product Description

BS5163 standard EPDM soft seal rising stem gate valve
Standard z41x soft seal gate valve body cover plate ductile iron stem stainless steel brass bronze operation handwheel square sleeve appearance epoxy powder spray or paint
1, use of Az41x-150lb American Standard soft-seal Gate Valve Z41X/RRHX stem elastic seat gate valve opening and closing piece is the gate plate, the movement direction of the gate plate is perpendicular to the direction of the fluid, the gate valve can only be fully opened and fully closed, can not be adjusted and throttled. Resilient seat gate valves are widely used in water, sewage, construction, petroleum, chemical industry, food, textile, metallurgy, energy systems and other fluid pipeline interceptors, the high elastic seat gate valve is characterized by light switch, reliable sealing, good elastic memory, long service life and so on. Second, AZ41X-150LB elastic seat gate valve structure and characteristics of structural performance features: 1, the bottom of the valve seat without groove and flat-bottomed structure, in line with the size of the valve body, to avoid debris accumulation, so that the flow unimpeded.
2, the body cover inside and outside the coating non-toxic Epoxy, its thickness is not less than, in use, do not crack, do not fall off. 3, the surface of the valve plate is completely covered with rubber, the rubber and the skeleton core frame combine firmly, not easy to fall off, good elasticity.
4, between the valve stem and the valve cover seal uses three o-type rubber seals, the valve stem rotation is portable, the seal is reliable and the service life is long.
5, the valve body adopts precision casting technology, and valve plate, good sealing performance, good interchangeability.
6, Valve parts surface and internal parts materials are not water corrosion, can be directly used for drinking water systems. III, z 41 x 150 LB elastic seat gate valve
Technical parameters
1. Pressure 1.0-1.6 MPA 150lb
2. Body pressure resistance: 1.5-3.0 MPA
3. Sealing test: 1.0-2.2 MPA
4. Operating temperature: 0-80 °C

---
