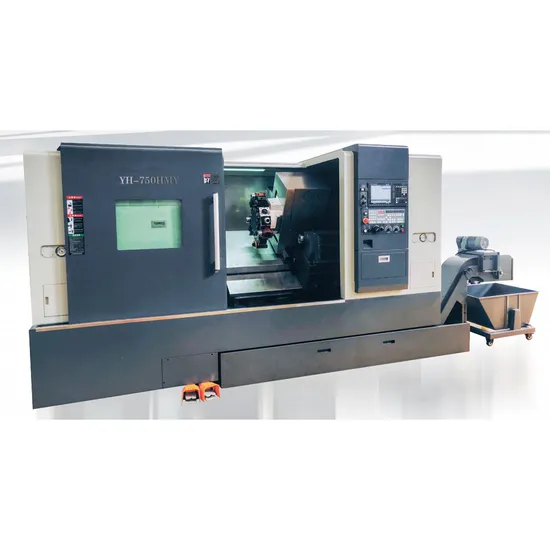

CNC Lathe Machine

Product Description

Product Description
Servo-powered turret features:
Fast and precise tool change for servo turret, combined with high-speed power shaft for powerful milling and turning
Excellent machining capability in combined milling type
Highly machinable BMT installation interfaces for tool holders
Servo spindle motor for the power transmission shaft
Power output by DIN 1809 linear shaped
Rotating tool speed up to 5000RPM
Adopting a positive Y-axis design, the center of gravity driving structure in the box is integrated with the turret, ensuring balanced force during processing;
Equipped with high rigidity servo-powered turret, it realizes axial and radial Y-axis milling functions, spindle C-axis interpolation, indexing,positioning functions, and spindle oil-pressure disc brake. Product Parameters

Main parameters (Unit: mm)
Parameters		Model	YH-750HMY/1000/1500/2000
Main parameters		Turning diameter on the bed surface	φ920 mm
		Max. machining diameter	φ600mm
		Machining diameter on the slide	φ440mm
		Max. machining length	530/830/1430/2030
Spindle and chuck parameters		Spindle head form	A2-8(10") optional A 2-11(12")
		Spindle motor power	22KW
		Max. spindle speed	2800rpm
		Spindle bore diameter	φ87mm
		Bar through-hole diameter	φ75mm
Feed part parameters		X/Z axis screw spec.	4008/3208/5010
		X-axis limit stroke	325mm/±60
		X and Z axis motor torque	30N.M
		Z-axis limit stroke	760/1085/1685/2285
		X and Z axis connection method	Direct connect
Accuracy		Machining accuracy	IT6
		Repeatpositioning accuracy	0.003mm
Servo turret		Servo-powered turret	BMT65/ER32/4000rpm
		Tool size	25 × 25
		Boring tool holder dimensions	40mm
Tailstock part		Sleeve diameter	100mm	130mm (with optional built-in rotation)
		Sleeve stroke	80mm	80mm
		Maximum tailstock stroke	785/1085/1685/2285
		Tapered bore of tailstock sleeve	Mohs 5#
Shape		Bed form and slope (L×W×H)	Integral/30°4200×1900×1850
Weight		Weight (approx.. weight)T	75/8.5/10.5/12.5T
Systems available: FANUC, MITSUBISHI, SIEMENS, GSK

Detailed Photos

---
