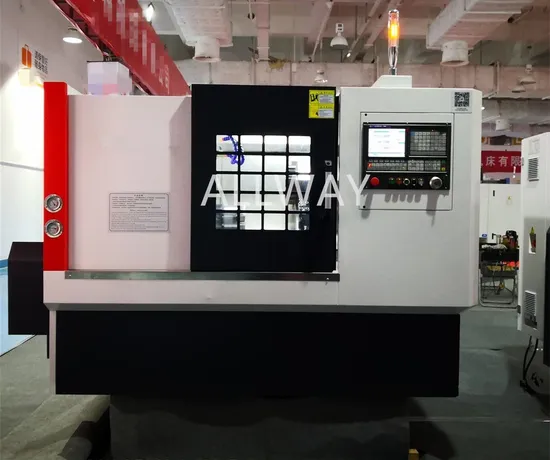

Small CNC Lathe Slant Bed CNC Lathe Machine Price Tck6340 Mini CNC Lathe for Small Metal Workpieces

US$11,000.00
1-4 Pieces
US$10,000.00
5+ Pieces

Basic Info.

Model NO.
TCK6340
Type
Multi-Axis Automatic and Semi-Automatic Lathe
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Slant Bed
High Precision
Can Be Used as
Mini CNC Lathe
Product Name
CNC Lathe Machine
Max.Swing Over Bed
400
Max. Swing Over Cross Slide
140
Max.Processing Length
200(Tck6340s:400)/ 100(Tck6340s:300)
X/Z Axis Travel
140/170
Spindle Bore
48/56
Chuck Size
6/8
Spindle Motor
5.5
Tool Post Type
Gang Tool(Option:Tool Turret)
Net.Weight(About)
2500
Competitive Capacity
CNC Lathe Machine Price
Cutting Tool Shape Size
20*20
Guide Form
45 Degree Slant Bed
Transport Package
Plywwod
Specification
TCK6340
Trademark
ALLWAY
Origin
China
HS Code
845811
Production Capacity
1000PCS/Year

Product Description

Small CNC Lathe Slant Bed cnc lathe machine price Tck6340 mini CNC Lathe for Small metal Workpieces cnc lathe
advantage:
1.high performance and cost ratio;
2. gang tools for changing tools fastly, and lower cost.
TCK6340 small CNC LATHE USE
This machine is mainly used for processing various shaft, disk parts, turning can be all kinds of screw thread, arc, cone and plane of internal and external surface can satisfy the ferrous and non-ferrous metals the speed requirement of high-speed chip. Suitable for cars, motorcycles, electronics, aerospace industry and other industries to high efficiency, large quantity and high precision of parts processing Machining precision can reach level 7.
TCK6340 small CNC LATHE Main Features
45 degrees slant bed CNC lathe;
Higher accuracy Taiwan brand linear guideway;
Chip conveying capacity is large and convenient, customer could choose;
Chip conveying capacity in the back;
Screw pre-stretching structure;
Gang type tool standard ;
Optional turret
Spindle unit has tow types: the heavy cutting type and the high speed type. The first used for bearing and gear processing; The second is suitable for the high speed and hign precessing. Customers could choose any type of them.
TCK6340(s) TCK6340 small CNC LATHE
Specifications Unit TCK6340(S)
Max.swing over bed mm 400
Max. Swing over cross slide mm 140
Max.processing length mm 200(TCK6340S:400)/
100(TCK6340S:300)
X/Z axis travel mm 400/300(TCK6340S:500)
Spindle unit mm 140/170
Spindle nose A2-5
Spindle bore mm 48/56
Diameter of through hole of pull pipe mm 40/45
Max.spindle speed rpm 4000/3500
Chuck size in 6/8
Spindle motor kw 5.5
X/Z axis repeatability mm +/-0.006
X/Z axis feed motor torque N.m 6/6
X/Z Rapid traverse m/min 18/18
Tool post type Gang tool(option:tool turret)
Cutting tool shape size mm 20*20
Guide form 45 degree slant bed
Total power capacity KVA 9/11
Machine dimension(L*W*H) mm 2300*1500*1750
Net.weight(about) kg 2500

TCK6340 small CNC LATHE Optional:
TCK6340 small CNC LATHE Packing:
Contact ALLWAY MACHINERY , get more professional information!
