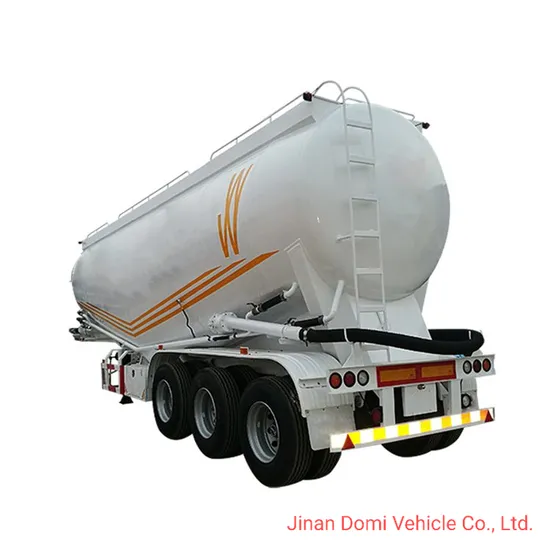

Domi 3 Axles 45 Cbm Bulk Powder Cement Tanker Cement Tank Semi Trailer for Sale (Volume optional)

Product Description

DOMI 3 Axles 45 cbm Bulk Powder Cement Tanker Cement Tank Semi Trailer for Sale (Volume optional)Product Description
Technique Datas
1. Loading rate >98% fully filling;
2. Residual rate <0.2%;
3. Delivery height >25m suitable most silo;
4. Faster unloading >1.5ton/min save fuel;
Product Parameters
DOMI 3 Axles 45 cbm Bulk Powder Cement Tanker Cement Tank Semi Trailer for Sale (Volume optional)

Tare weight pro.	8.6T
Volume	45 m3
Overall size(L*W*H)mm	10000mm*2550mm*4070mm
Diesel engine	Weichai 4102#
Air compressor	Fuda 12m3 double cylinder,37kw, 0.2Mpa. 1000R/min; or Bohai 14m3 double cylinder,44kw,1500-2400R/min;
Shape	"V" type
Compartment	1, can be customized
Tank body	Material: Q235 Thickness: 4mm End plate thickness: 4mm, ball shape
Manhole cover	500mm
Air charging system	2" main hole; 2" check valve; 1.5" safe valve; 0.4 Mpa gauge
Inner staff	Air bag
Quadratic blow	1" dia. Check valve
Discharge valve	4" disc valve
Unloading pipe	Length: 8m, 4" dia. Rubber hose
Axle	Brand: Fuwa; Capacity: 13T16P QTY: 3 units
Tyre	Chengshan 1100R20-18; double mounted, QTY: 12 units
Rim	20*8.0-14, 12 units
Landing gear	28T total Lifting capacity and 50T static capacity; double speed; large pad feet;
Suspension	Mechanical system with beams equaliser
Leaf spring	Size: 90mm*13mm; Qty: 10+10+10
Brake system	Type: Dual line braking system Brake air chamber: 6 in total, T30/30*4 + T30*2 Air tank: 40L*1 unit ABS: none
Kingpin	50#/90#
Electric system	24V LED light; waterproof wire; 7 ways (7 wire harness); Tail lamp with turn signal & brake light & side lamp & reflector etc.
Tool box	1 unit; include: 1 tyre spanner, 1 gudgeon sleeve & 1 cranking bar & instruction sheet
Spare wheel bracket	1 unit
Protectors	Mudguard; Mud-flags behind rear axle; Mid & Rear Side protection; Rear platform

Detailed Photos
Spare tire bracket: Zhengli spare tire bracket, 20 years of production experience, labor-saving lightweight, long life, safe and reliable.
All spare parts are guaranteed products, and even the reflective strips are well-known 3M brand. If other companies use spare parts of our brands, at least 3,000RMB higher than our offer.

leaf spring: The same weight but bearing capacity is the largest, our warranty is 1 years longer than any other brands.
King pin: raw material 40 chrome, 2 procedures of heat treatment to achieve the best performance, The ordinary material no heat treatment and only 1 heat procedure
FUNCTIONS YOU NEED , FUNCTIONS WE HAVE !!
Chaoyang, Triangle, Double Coin, Chengshan, and Linglong. All our tires are guaranteed tires. non-guarantee products cost lower, but burst earlier.
We can produce goods according to customers' requests or drawings;
Short delivery & Safe packing;
Small order quantity is acceptable;
More details for these trucks, feel free to contact!
Packaging & Shipping
Customer Praise
Professional shipping Plan, economical sea freight!!!
Company Profile
SHANDONGYUNCHENGXINYATRAILERMANUFACTURINGCO.LTD
have been in truck trailer field for more than 20 years !Our products are famous in aftermarket !
We've export to Europe, South America, South Africa and Southeast Asia !!!
We've passed ISO9001:2000 & BV & SGS & CCC certificates!!
We've set up unified technical departments and testing standards!!!
FAQ
Q:Does your company have your own factory?
A:Yes, we are manufacturer, we have been in this area for 20 years.
You are welcome to visit our factory at anytime!
Q:How about delivery time?
A:In general, 15-25 working days after receive deposit, depending on the purchase quantity. Q:What about your products quality?
A:Quality is our culture! Our factory has advanced production technology and management team!
We always attach great importance to quality controlling from the very beginning! Q:Can you customized semi trailer as our requests?
A:Of course, it is our advantages, what you want, what we produce. Q:Can you paint our company logo on the trailer?
A:Yes, it is available, you can send to me the logo picture before trailer finished, we will put your company logo on the trailer.

---
