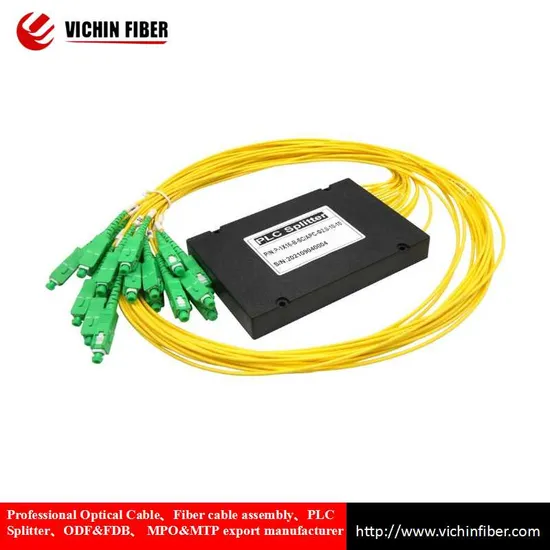

1X16 Sc/APC Connector ABS Plastic Box Fbt Splitter Coupler

Product Description

1x16 SC/APC connector ABS plastic Box FBT splitter coupler --- Product Description ---

Product Name:	optical fiber FBT Coupler splitter
Place of Origin:	Zhejiang, China
Use:	CATV/FTTH
Connector Type:	None
Certification:	RoHS
Brand Name:	VICHINFIBER
Wavelength:	1310/1550nm
Grade:	P Grade
Fiber Type:	Corning G.657 A1 fiber

Product Description Coupler offer very low insertion loss, low polarization dependence and excellent environmental stability Accurate coupling ratio from 50/50 to 1/99 and fiber type 250um bare fiber, 3mm and 900um loose tube fiber are available with very tight uniformity. Singlemode standard coupler and wideband coupler components find extensive application to perform power splitting and monitoring functions in all kinds of optical communication systems.
Features

Mini sizeHigh isolationLow PDLLow excess lossHigh stability and reliability
Applications
FTTH & LAN
WDM systems
CATV Systems & Fiberoptic Sensors
Long-haul Telecommunications
Specification

Port	1*2	1*4	1*8	1*16	1*32	1*64
Working Wavelength (nm)	1260-1650	1260-1650	1260-1650	1260-1650	1260-1650	1260-1650
Insertion Loss (dB) Max P/S	3.8/4.0	7.0/7.2	10.3/10.5	13.5/13.7	16.5/16.8	20.1/20.5
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.0
Return Loss (dB) Max P/S	55/50	55/50	55/50	55/50	55/50	55/50
PDL (dB)	0.2	0.2	0.2	0.25	0.3	0.35
Directivity (dB)	55	55	55	55	55	55
WDL (dB)	0.3	0.3	0.3	0.5	0.5	0.5
Working Temperature (ºC)	-40~85	-40~85	-40~85	-40~85	-40~85	-40~85
Storage Temperature (ºC)	-40~85	-40~85	-40~85	-40~85	-40~85	-40~85
Componet Sealing Packing Size (LxWxH) (mm)	4x4x50	4x4x50	4x4x50	4x7x50	4x7x50	4x12x60
PLC Splitter ABS Box Size (LxWxH) (mm)	100x80x10	100x80x10	100x80x10	120x80x18	120x80x18	141x115x18
Module Size (LxWxH) (mm)	4x4x40	4x7x60	4x7x60	4x12x60	6x20x80	6x40x80
