Product Description
Product Description

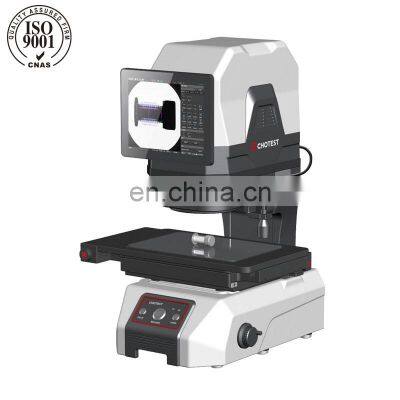

Product Overview VX3030D Image Dimension Measurement SystemBased on visual measurement principle with precision image analysis algorithms, equipped with double telecentric optical lens with high depth of field, VX3000 series of Flash Measuring Machines achieve fast dimensional measurement by one-key operation. VX3000 series are suitable for precise dimensional measurement in the fields of machinery, electronics, molds, injection molding, hardware, rubber, low-voltage electrical appliances, magnetic materials, precision stamping, connectors, connectors, terminals, mobile phones, home appliances, printed circuit boards, medical equipment, watches, cutting tools, etc.FEATURES AT A GLANCE Product Functions1. Fast, effective1) Place the object at will without any workholder2) Max 512 features at once time3) Quick and precise measurement for batch workpieces in CNC mode.2. Accurate, consistent1) Anybody can get the consistent results by one-key operation2) Automatic focusing: Avoid deviation because of different focusing3) Automatic feature identification: Consistent results from different measurement and different operators3. Full functions, automatic report1) User-friendly software, powerful functions, simple operation2) In CNC mode, Quick and precise measurement for batch workpieces according to pre-set template by one-key operation3) Automatically output SPC analysis report, which contains statistical values (such as Ca, Cp, Cpk, Pp, Ppk, etc.) and controlcharts (such as mean and range charts, mean and standard deviation chart, median and range chart, single value and moving range chart).PRODUCT SPECIFICATIONS Model No. VX3030DImage Senor 5M CMOS MonitorBuilt-in 10.4" LCD (XGA: 1024×768) External 24" LCD (XGA: 1920×1080)Acceptance Lens Double Telecentric Lens Illumination systemCasting Illumination System Four-segment illumination(White Light) Ring directional illumination(Green Light) Transmission Illumination System Telecentric transmission illumination(Green Light) Field of ViewWide-Field Mode 20*L130 High-Precision Mode 6*L116Resolution 0.1μm RepeatabilityWide-Field ModeW/o stage movement±0.5μm With stage movement±1μm High-Precision ModeW/o stage movement±0.1μm With stage movement±0.5μm AccuracyWithout binding*1Wide-Field Mode±2μm High-Precision Mode±0.7μm With binding*2Wide-Field Mode±(4+0.02L)μm High-Precision Mode±(2+0.02L)μmSoftware VisionX StageX Moving Range110mm(Motorized) Y Moving Range ---------------- Z Moving Range 35mm(Motorized) Loading Capacity 2kgSize(LxWxH) 500×280×670mmWeight 30kg Power supply 100-240VAC,50/60Hz,2A, Power 300W Working Environment Temp.10℃~35℃, Humidity 20%~80%, Vibration<0.002g, Less than15HzNote:*1 In the focus position, the environment temperature is +20 °C ± 1.0 °C*2 In the focus position, the environment temperature is +20 °C ± 1.0 °C, and the load on the table is 1 kg or less; L is themoving range of the table (mm).Products Application More ApplicationProduct packaging 1. VX3000 series of host machine 1pc2. Built-in monitor 1pc3. Power adapter 1pc4. Cables 1set5. VisionX software 1pc6. User Manual 1pc7. Product certificate and warranty card 1setSIMILAR PRODUCTS FAQ 1. Are you factory?Yes, we are specialized in designing and producing precision measurement instruments and calibration instruments.2. How many years experience do you have?We have 16 years experience on measurement instruments and calibration instruments since 2002. 3. What size of your factory?We have 5000 square meters of factory and 2,000 square meters of modern office 4. Can you accept OEM and ODM?No, we only sell the products under Chotest brand. 5. Can I become your distributor of China supplier Chotest laser measuring system for Straightness measurement?Yes, please contact our sales engineer. 6. What is the lead time?Lead time is 30-60days in usual. 7. What is your payment term?30% deposit first, balance payment before delivery. We accept T/T, L/C. 8. How to install the machine?We dispatch our engineers to install and debug the machine in site of the customer. 9. What is your warranty term?We provide 1 year warranty after acceptance inspection by customer.Free repair or replacement in 1 year warranty in case of any problem.Response in 12 hours for emails or calls from customers in working days.
>>
