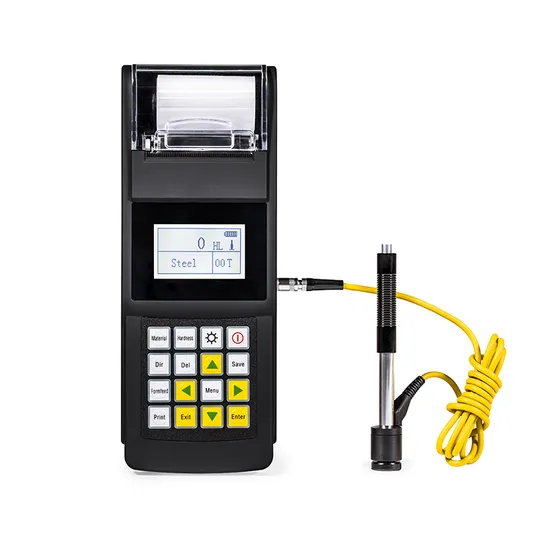

Hot Selling High Accuracy Advanced Portable Digital Hardness Tester

Product Description

Hot Selling High Accuracy Advanced Portable Digital Hardness Tester Product Description Application Fields:
The bearings and other parts, heavy work-pieces, metal material, pressure vessel, failure analysis of turbine generator unit and equipment Mechanical or permanent assembly components have been installed, the test space is very narrow, requires the original record regular test results Large work-piece within a wide range of more rapid test measurement site
Optional Impact Device:


Measuring Conditions: The weight of measuring object ≥ 2kg. The thickness must be ≥ 10mm. The surface roughness must be ≤ 1.6μm. Tips: If do not meet the above conditions, the measuring object should be laminated with steel substrate by coupling agents.
Product Parameters Special Supporting Ring ( use for different shape surface):

Model	Notice	Model	Notice
Z10-15	Outside cylinder R10-15	K10-15	Outside sphere R10-15
Z14.5-30	Outside cylinder R14.5-30	K14.5-30	Outside sphere R14.5-30
Z25-50	Outside cylinder R25-50	HK11-13	Inside sphere R11-13
HZ11-13	Inside cylinder R11-13	HK12.5-17	Inside sphere R12.5-17
HZ12.5-17	Inside cylinder R12.5-17	HK16.5-30	Inside sphere R16.5-30
HZ16.5-30	Inside cylinder R16.5-30	UN	Outside cylinder, Radius can be adjusted R10-∞

Measuring Range:

	Hardness	Impact Device
		D/DC/DS	C	G	DL
ST&Cast ST	HRC	17.1~68.5	20.0~69.5		20.6~68.2
	HRB	59.6~99.6		47.7~99.9	37.0~99.9
	HB	140~651	80~683	90~646	150~646
	HV	83~976	80~996		85~950
	HS	26.4~99.5	31.9~102.3		26.5~99.4
Forged steel	HB	142~651
CWT Steel	HRC	17.1~67.1	20.0~69.5
	HV	83~976	80~996
Stainless	HRB	59.6~99.6
	HB	140~651
	HV	83~976
GC Iron	HB	140~334		92~326
NC Iron	HB	140~387		140~364
Cast Alum.	HB	30~159
Brass	HB	40~173
	HRB	13.5~95.3
Bronzes	HB	60~290
Copper	HB	45~315

Technical Specification of Impact Device

Optional Impact Device	DC/D/DL/DS	D+15		C		G	E
Impact energy	11mj	11mj		2.7mj		90mj	11mj
Impact body weight	5.5/5.5/7.2/5.5(g)	7.8(g)		3.0(g)		20(g)	5.5(g)
Hardness of Impact Ball	1600HV	1600HV		1600HV		1600HV	5000HV
Diameter of Impact Ball	3mm	3mm		3mm		5mm	3mm
Material of Impact Ball	Tungsten carbide	Tungsten carbide		Tungsten carbide		Tungsten carbide	Diamond
Diameter of Impact Device	20/20/6/20mm	20mm		20mm		30mm	20mm
Length of Impact Device	86/147/202/138mm	162mm		141mm		254mm	155mm
Weight of Impact Device	50/75/60/70g	80g		75g		250g	80g
Specimen Maximum Hardness	940/940/950/940HV	940HV		1000HV		650HB	1200HV
Average roughness of specimen surface(Ra)	1.6μm	1.6μm		0.4μm		6.3μm	1.6μm
Specimen Minimum Weight
Direct Measurement Weight	>5kg	>5kg		>1.5kg	>15kg		>5kg
Need to support fixed Weight	2~5kg	2~5kg		0.5~1.5kg	5~15kg		2~5kg
Need coupling support Weight	0.05~2kg	0.05~2kg		0.05~0.5kg	0.5~5kg		0.05~2kg
Specimen Minimum Thickness
Need coupling support Thickness	5mm	5mm		1mm	10mm		5mm
Hardening Layer Minimum Thickness	≥0.8mm	≥0.8mm		≥0.2mm	≥1.2mm		≥0.8mm
Size of Ball Indentation
300HD Indentation Diameter	0.54mm		0.54mm	0.38mm	1.03mm		0.54mm
300HD Indentation Depth	24μm		24μm	12μm	53μm		24μm
600HD Indentation Diameter	0.54mm		0.54mm	0.32mm	0.90mm		0.54mm
600HD Indentation Depth	17μm		17μm	8μm	41μm		17μm
800HD Indentation Diameter	0.35mm		0.35mm	0.35mm	---		0.35mm
800HD Indentation Depth	10μm		10μm	7μm	---		10μm
Impact Device Scope of application	DC:Inner hole/within the cylinder; DL:slender narrow slot /hole;D:Conventional DS:Assembly line on-line detection (loading and release is only one time)		D+15:Interface is small,long, groove or the surface of the recess	C:Impact is small, undamagehardening layer, For small, light, thin parts and hardening layer	G:For castings and forgings of large, thick, heavy and surface is rough		E:Suitable for measuring material with very high hardness
