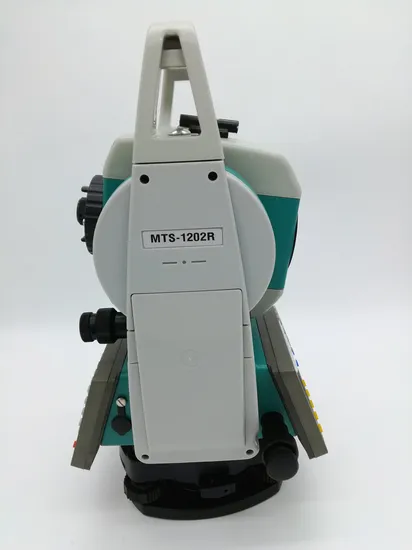

| MODEL | MTS1202R | |||||
| Telescope | ||||||
| Image | Erect | |||||
| Magnification | 30X | |||||
| Effective Aperture | 45mm | |||||
| Resolving Power | 4" | |||||
| Field Of View | 1°30' | |||||
| Minimum Focus | 1.5m | |||||
| Distance Measurement(under Fair Weather Condition) PRISMLESS : 500 m | ||||||
| Range 1P | 3km | |||||
| 3P | 5km | |||||
| Accuracy | 2mm+2ppmxD | |||||
| Minimum Count | 1mm | |||||
| Distance Unit | ft.Or m selectable | |||||
| Measuring Time | ||||||
| Fine | 1.8sec.(first time2.5sec.) | |||||
| Tracking | 0.4 Sec. | |||||
| Maximum display | 999999.999m | |||||
| Atmospheric Correction | ||||||
| Temperature | C or F | |||||
| Atmospheric Pressure | hPa/mmH/inHg | |||||
| Atmospheric Deflection & | ||||||
| Earth Curvature Correction | k=0.14/0.20/0 | |||||
| Prism Constant | 0 mm / 30 mm | |||||
| Angle Measurement | ||||||
| Measurement Method | Incremental Photoelectronic Encoder | |||||
| Detection Method | ||||||
| Horizontal | Dual | |||||
| Vertical | Dual | |||||
| Accuracy | 2" | |||||
| Minimum Readout | 1"and5" | |||||
| Sensitivity of Vials | ||||||
| Plate Vial | 30"/2mm | |||||
| Circular Vial | 8'/2mm | |||||
| Compensation | Dual Axis Compensation | |||||
| Type | Liquid-electric detection/Plate level | |||||
| Compensation Range | +/-3' | |||||
| Resolution | 1" | |||||
| Optical Plummet | ||||||
| Image | Erect | |||||
| Magnification | 3X | |||||
| Focus Rang | 0.5m-infinity | |||||
| Display | Big Display , Double Side, LCD | |||||
| Data Port | RS-232 | |||||
