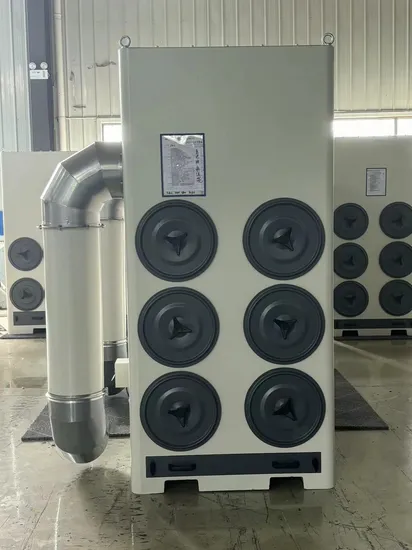

Pulse Inverse Blow Industrial Dust Collector Industrial Portable Filter Cartridge Dust Collector

Product Description

authentication
company's certificate
Since 2006, the company has been developing for 18 years, in the field of the industry has been highly recognized by the relevant national departments of our independent research and development capabilities, HX has served 3000+ customers, exported to more than 80 countries and regions, established the HX brand in the field of industrial dust removal reputation and influence!
Product DescriptionProduct Name:
Industrial A-type centrifugal fan mobile dust removal equipment is specially used to remove dust from laser cutting machines
Basic Info.

Model NO.	ZD35	Power	2.2kw
Voltage	380V/50Hz/3p Can Customizable	Application	Welding/Soldering/Lasering Position
Cleaning Way	Auto Pulse Jet	Filtration Area	30m2 at Least
Filtration Accuracy	99.9%	Mini Particle Size	0.3um
Transport Package	Standard Export Packing or Customized	Specification	650*670*1260
Trademark	HX or OEM	Origin	China
HS Code	8421392990	Production Capacity	30000 Pieces/Year

Product ApplicationUse for purification of the smoke and dust during the welding, polishing, cutting, grinding process and the recycling of rare metals and precious material, can purify large amounts of suspended small metallic particles in the air.
Operating Principle:
It is equipped with three layer filter system
1, under the help of the fan device, the welding fume is sucked into inlet through sucking hood. There is the flame arrester in the inlet, so the spark can be blocked here, the left fume and dust is sucked into gravity separator, and then the bigger particles firstly descend into dust bag.
2, the smaller particles are arrested in the surface of core filter. The cleaner gas then flow into clean room after being purified by core filters.
3, in clean room, the clean gas is then further purified by active carbon. At last, the gas meets the required standards and enters into air or other required room.
The basic Stage Filtration Process about the welding fume extractor
Stage 1: Air passes trhough the pre-filter fire-proof net.
Stage 2: Air passes through a second pre-separator to further reduce medium to heavy particulate matter.
Stage 3: Air passes through the LongLife-H filter where welding fume particles are captured and deposited.
Stage 4: Activated carbon filter will help prevent or neutralize the release of odors back into the environment.
Facility Characteristics
1) It is equipped overload prevention circle to avoid motor damage. It is of steady performance.
2) The operation panel is clear and simple, very easy to operate.
3) Pulsing back-flushing automatic dust-removal system: The filter core is the automatic rotating and back-flushing type, which keeps the filter core surface clean when working, to insure the stable blowing rate; the air compressor parts are connected with high pressure rubber pipe with high pressure air-inflow in the bottom, which insure the facility always in good working condition.
4) The filter core is imported from America with long useful life. It can arrest the 0.3μm particles. The filtering effect is good for all kinds of particles including the wet particles.
5) It is equipped with the all-directions sucking arm of 360 degree rotating. It can suck the fume exactly from the source which make best of the fume collection efficiency, and insure the workers' health in the largest extent.
6) It is equipped with three layer filter system to avoid the damage effect of flame and large slag particles, which extend the useful life, safer and more reliable.
7) Clean air uniform guidance and dispersed from the grille outlet, to keep the noise minimum.
8) It is attached with all-direction caster wheels, which makes the facility movable freely and easy to position.
9) Photoelectric controlled on/off, energy saving and high efficiency. The hood has the lighting device which is upon customer's choice.
10) The parts working condition are all stable and have long useful life, meantime easy to be replaced.
Certifications
Detailed
Name:Filter cartridge
Brand: HUAXIN
Original: China
High filter cartridge imported from USA as the filtering element,PTFE membrane filter,for the adhesion of dust,PTFE caated filter element can filter dust particles reach 0.3um(optional higher level of filtration),the filtration efficiency reached 99.99%.Even if the ambient temperature is lower than the dew point temperature.The filter element also maintains a stable filtration capacity.PTFE membrane filter has the advantages of membrane filtration and rigid body filtration,and small volume,large filtration area of rigid filter allows high working pressure,and has a very long service life.
Name: Air collecting cover
Brand: HUAXIN
Original: China
The unique design of the cover and Fireproof vacuum pipeline can be used to collect smoke and dust in large area. Laser cutting the material, the surface leveling size is accurate. The surface is sprayed on galvanized steel sheet with excellent rust preventive effect.
Name: High-quality part
Brand: HUAXIN
Original: China
Each part is strictly tested, every detail is well done, and the overall quality of the product is improved
Name: Brand fan and silencer cotton
Brand: YINNIU
Original: China
Brand fan + silencer cotton can minimize noise, reduce occupational injuries and protect your health.
factory profile
Jinan Huaxin Automation Engineering Co., Ltd. is a national high-tech enterprise dedicated to providing centralized gas supply system, two or more gas mixing systems and industrial waste gas centralized treatment and purification solutions for modern factories.
The company has registered capital of 30 million RMB, and has a strong R & D team., has obtained 13 national invention patents, utility model patents more than 40. In 2012, Huaxin Corporation officially established Jinan Huaxin Technology Research and Development Center; in 2013, was awarded Jinan "contract-abiding and credit-worthy enterprises", the same year was awarded "Jinan academician expert Grass-roots Service workstation"; in July 2014 was awarded a certificate of innovation fund for science and technology-based SMEs; in 2016, was awarded a demonstration of intellectual property rights in Shandong Province. Enterprises, in 2017, won the "national intellectual property advantage enterprises".
As a leading manufacturer of Welding Fume Extractor and Gas Mixture Proportion Cabinet, We are pleased to inform you that we have cooperation with many big companies in the world.

Model	Airflow m3/h	Power kW	Voltage V	Filter Area m2	Filter Precision %	Noise dB(A)	Size mm
HXYD-ZD18	1800	1.1	380V/50Hz/3P 415V/50Hz/3P 220V/60Hz/3p	15	99.99%	68	650*670*1260
HXYD-ZD22	2200	1.5		20		70	650*670*1260
HXYD-ZD30	3000	2.2		20		72	650*670*1260
HXYD-ZD35	3500	3.0		25		75	650*670*1260
HXYD-ZS35	3500	3.0		25		75	700*680*1300
HXYD-ZD40	4000	4.0		30		78	650*670*1300
HXYD-ZS40	4000	4.0		30		78	650*670*1300
HXYD-ZD50	5000	5.5		40		85	850*936*1700
HXYD-ZS50	5000	5.5		40		85	850*936*1700

Note: ZD with 1 suction arm. ZS with 2 suction arms. The length of suction arm is 2.2m-3m. These seven types of welding fume extractor is Auto-pulse jet cleaning with Motor.

HXYD-JD18	1800	1.1	220V/50Hz/1P	15	99.99%	68	500*500*980
HXYD-JD22	2200	1.5	380V/50Hz/3P 415V/50Hz/3P 220V/60Hz/3p	17		70	500*650*1100
HXYD-JD30	3000	2.2		20		72	500*500*980
HXYD-JS30	3000	2.2		20		72	500*650*1100
HXYD-JS35	3500	3.0		25		74	500*650*1100

Note: JD with 1 suction arm. JS with 2 suction arms. The length of suction arm is 2.2m-3m. These five types of welding fume extractor are manual.

HXYD-JD18	1800	1.1	220V/50Hz/1P	15	99.99%	68	500*500*980
HXYD-JD22	2200	1.5	380V/50Hz/3P 415V/50Hz/3P 220V/60Hz/3p	17		70	500*650*1100
HXYD-JD30	3000	2.2		20		72	500*500*980
HXYD-JS30	3000	2.2		20		72	500*650*1100
HXYD-JS35	3500	3.0		25		74	500*650*1100
Note: JD with 1 suction arm. JS with 2 suction arms. The length of suction arm is 2.2m-3m. These five types of welding fume extractor are manual.
Product Name	Airflow m3/h	Power kW	Voltage V	Filter Area m2	Filter Precision %	Noise dB(A)	Size mm
Downdraft Table	2000	2.2kW	380V/50Hz/3P 415V/50Hz/3P 220V/60Hz/3p	20	99.00%	74	1000*1100*1560
	2500	3kW
Downdraft Table	2000	2.2kW	380V/50Hz/3P 415V/50Hz/3P 220V/60Hz/3p	20	99.00%	74	1350*700*800
	2500	3kW
High Negative Pressure fume extractor for Welding Gun	318	1.6kW	380V/50Hz/3P 415V/50Hz/3P 220V/60Hz/3p	8	90.00%	72	620*660*1100
Multi-Function Fume Extractor	6000	5.5kW	380V/50Hz/3P 415V/50Hz/3P 220V/60Hz/3p	36	99.90%	80	1000*930*1960
Dust Collector for Laser Cutting Machine	4000	5.5KW	380V/50Hz/3P 415V/50Hz/3P 220V/60Hz/3p	94	99.50%	82	1080*1430*2080
	6000	7.5kW		140	99.50%	83	1106*1430*2267
	9000	11kW		188	99.50%	84	1106*2100*2258
	10000	15kW		284	99.50%	85	1402*2208*2257

---
