High Quality Carbon Fiber Bonding Aerospace Oven Industrial Continuous Composite Curing Autoclave

Product Description

Carbon Fiber Composite Curing Autoclave Product Description
Autoclave is a kind of process equipment for the characteristics of polymer matrix composite molding process. The method of using this equipment for molding process is called autoclave method. Autoclave forming is the main method to manufacture continuous fiber reinforced thermoset composites, which is widely used in advanced composite structures, honeycomb sandwich structures and metal or composite bonding structures.
Autoclave is widely used in aerospace, electronics, security and protection, transportation, sports equipment and new energy and other high-tech fields. The autoclave developed by our company has the advantages of high temperature and pressure control precision, safe and reliable structure, good system stability, low energy consumption, simple operation and maintenance.

Effective Curing Diameter	φ2000-3000mm
Shell Length	2400-3500mm
Effective Curing Length	According To The Product,Tooling And Yield Selection
Maximum Operating Pressure	0.6-4.0MPa
Maximum Operating Temperature	160-400ºC
Number of Vacuum Channels	According To Demand
Number of Thermocouple Routes	Specify As Required
Control System	Host Computer +PLC Logic
Temperature Control Accuracy	≤±1ºC
Temperature Uniformity	≤±2ºC
Rising and Cooling Rate	0-6ºC/min Adjustable
Pressure Lifting Rate	0-0.1MPa/min Adjustable
Cooling Method	Circulating Water Cooling
Heating Method	Electric Heat Pipe Heating

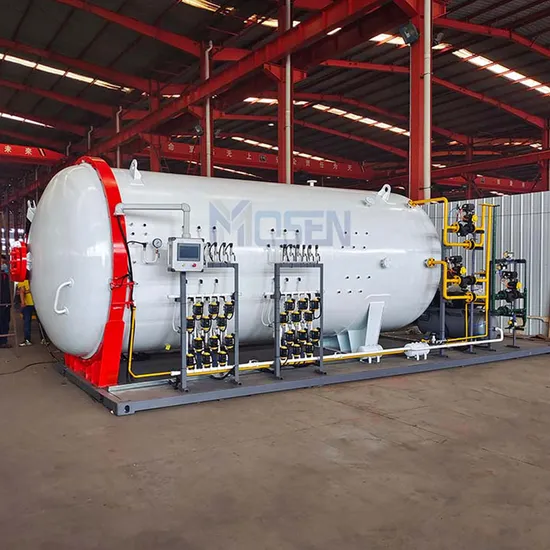

Detailed Photos
Main Products

Autoclave can be divided into composite autoclave, vacuum autoclave, carbon fiber autoclave, high temperature and high pressure autoclave, aerospace autoclave, sporting goods autoclave, auto autoclave, experimental autoclave and so on. Among them, each type of autoclave can be subdivided into large autoclave, small autoclave and so on according to its size.
Application
Product Parameters

TYPE	1600*2500	2000*3500	2500*5500	3000*6500	3500*7500	4000*8500
Max pressure	3.8MPA	1.0MPA	1.0MPA	1.5MPA	1.2MPA	1.2MPA
Design pressure	4MPA	1.2MPA	1.2MPA	1.6MPA	1.3MPA	1.3MPA
Max temperature	400ºC	250ºC	250ºC	250ºC	250ºC	250ºC
Design temperature	420ºC	270ºC	270ºC	270ºC	270ºC	270ºC
Insulation	Internal 200mm	Internal 150mm	Internal 150mm	Internal 150mm	Internal 150mm	Internal 150mm
Total power	60kw	90kw	210kw	330kw	510kw	780kw

Company Profile
Shandong Mosen Machinery Co.Ltd is established in 2004. It is a national D1, D2 pressure vessel manufacturer integrating design, manufacturing, research and development in northern China. The compamy's composite autoclave, rubber vulcanization autoclave, have passed ASME & CE qualification certification and theproducts have a wide range of customers woridwide. The company'sequipment production adopts advanced automatic welding. testing. andinstallation equipment, and has a production and R&D team of more than 200 people, ensuring that every product in the factory meets the nationalpressure vessel production standards.
Mean while, we also have professional technical team in designing and producing which can meet different requirements from customers, that's why we can support OEM production line, we offer 24 hours pre-sales and after-sales support, to ensure in-time communication between clients and us.
Our Advantages
Packaging & Shipping
Q1:Are you a factory or a trading company ?A1:We are the factory, located in Shandong. Expecting your visit at anytime.Q2:How long is the delivery time of bulk orders ?A2:Bulk order lead time: About 35 working days.
Q3: How to pay?A3:We try to make all payment methods as much as feasible. TT and L/C are acceptable and TT will be more appreciated.Q4: What is your advantage ?A4:We also have professional technical team in designing and producing which can meet different requirements from customers, we offer 24 hours pre-sales and after-sales support, to ensure in-time communication between clients and us.Q5: Is the price on your website is the closing price ?A5:No, it is just for your reference, an exact quotation based on your requirement Please contact us for details.
Q6: May I inspect before delivery?A6:Sure, welcome to inspect before delivery.And if you can't inspect by yourself,our factory has a professional quality inspection tea

---
