Industrial 2 Axis Positioner for Welding Manipulator High Speed Robot Welding CO2 Welding Robot

Product Description

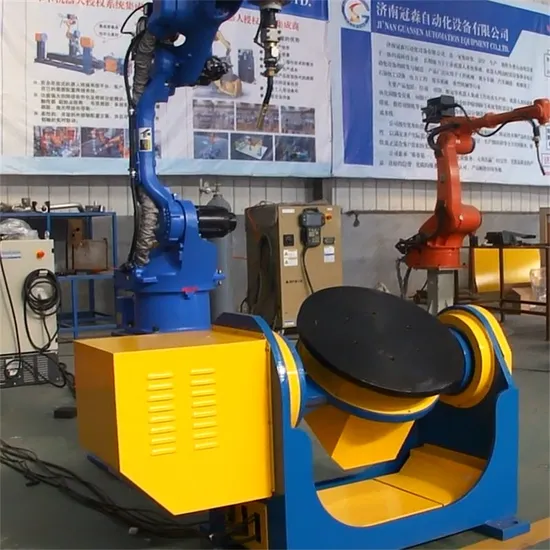

Product Description Servo positioner is a specialized welding and cutting equipment for industrial robots, suitable for welding and cutting complex workpieces to achieve ideal machining positions and speeds. The rotary table of the displacement machine adopts a well-known foreign brand servo motor combined with a high-precision reducer, which has high rotary accuracy, accurate positioning, and strong load-bearing capacity. By configuring different servo motors (linkage and non linkage), remote operation of the displacement machine can be achieved through robot teaching aids or external operation boxes.
The servo displacement machine mainly consists of a fixed base, a rotating spindle box, a welded frame, a servo motor and precision reducer, a conductive mechanism, a protective cover, and an electrical control system.
The welded overall frame is made of high-quality steel and welded. After being returned for stress relief, it undergoes professional mechanical processing to ensure high precision and usage accuracy in key positions. The surface is sprayed with rust proof exterior paint, and the color can be customized according to customer requirements.
Turn over to make the workpiece fixed on the workbench reach the required welding and assembly angle. The rotation of the workbench is controlled by a servo motor, which can achieve the ideal welding speed.
Detailed Photos
Product Parameters

Type	Double Axis P Type Welding Positioner
Rated Payload	200kg( The 2nd shaft axis radius≤R300mm)	500kg(The 2nd shaft axis radius≤R300mm)
Standard Radius of Gyration	R400mm	R400mm
Maximum load eccentricity	≤240mm	≤150mm
The height of clamping	≤500mm(More than 500mm ,the bob-weight will increase with the actual load)	≤400mm(More than 400mm ,the bob-weight will increase with the actual load)
Maximum rotation angle of axis 1	±90°	±90°
Maximum gyration angle of axis 2	±360°	±360°
Rated rotation speed of axis 1	50°/S	50°/S
Rated gyration speed of axis 2	70°/S	50°/S
Repeat positioning accuracy	±0.08mm(At R=400mm)	±0.08mm(At R=400mm)
Positioner dimension(L*W*H)	1000mm*550mm*600mm	1200mm*600mm*750mm
Second axis 2 gyration disk size	Φ500mm(ZK's hollow internal hole diameter Φ30mm)	Φ600mm(ZK's hollow internal hole diameter Φ50mm)
Height of axis 1 gyration center	500mm	540mm
Equipment net weight	About 300kg	About 500kg

Company Profile

Jinan Guansen Automation Equipment Co., Ltd is located in Jinan, Shandong, China. As a high-tech enterprise, we focus on integrating research and development, design, production, and sales of various types of automation equipment. The company is committed to manufacturing professional industrial peripheral equipment and non -standard automation equipment. The products are widely used in construction machinery, locomotive vehicles, automobile manufacturing, ship heavy industry, petrochemical equipment, power engineering, coal machinery, heavy machinery and other industries. Product Lineup Robot peripheral supporting equipment Standard servo welding positioner Standard robot Linear rail Robot integrated workstations and production lines for welding, cutting, handling, forging, casting, machining, painting, etc. Peripheral safety protection smoke removal system and other supporting equipment. Non-standard CNC welding machines, CNC cutting machines and other automatic welding cutting equipment. The specifications of non-standard welding positioner and Linear rail can be customized .

Certifications
Packaging & Shipping
FAQ1. Q: Is your company a manufacturer?
A: Yes, we have our own factory in Jining City and our own foreign trade company in Jinan City. We are a company that integrates factory and foreign trade.
2. Q: What is the quality of the company's products?
A: The company's products have been produced in China for over 10 years and have cooperative relationships with multiple trading companies. Our products are exported to various parts of the world.
3. Q: Does the product support personalized customization?
A: Products can be personalized and customized according to the actual needs of customers. Customizable content includes: specifications, colors, logos, etc.
4. Q: What are the transportation and packaging methods? A: We will use wooden boxes for packaging, and the transportation method can be negotiated and arranged for shipment.
Accepted Delivery Terms: FOB, EXW
5.Q: What after-sales service can you provide?
A: We provide complete technical support and a one-year warranty.
