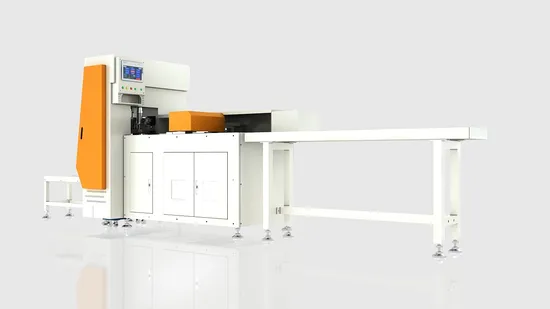

Intelligent Busbar Duct Connection Row Busbar Punching and Cutting Machine

US$40,000.00-60,000.00 1 Set (MOQ)

Basic Info.

Model NO.
EMAC-BDM-SP
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Weight
2200kg
Norminal Force
200 Kn
Max. Sheet Length
6000 mm
Max. Sheet Width
120~140 Customizable
Max Hydraulic Power
31.5 MPa
Processing Thickness
3-4.5mm
Transport Package
Export Standard Free-Fumigation Wooden Case
Specification
Size: 2330*1660
Trademark
BEIENE
Origin
Qingdao, China
Production Capacity
200 Sets Per Month

Product Description


Advantages:

1.This product is mainly used for making busbar connection slot connected row, and it is to automate busbar connection line of punching, stretching and shearing with high production.
2. Working Unit: Hydraulic drive, stable and reliable.

3.Touch Screen: Human-computer interface, the operation is simple and demonstrate real-time the operation status of the program, the screen can show the alarm information of the machine, and it set the basic die parameters and control the machine operation.

4.The machine adopts high accurate ball screw transmission and straight guide to guarantee high precision and fast efficiency.

5.The imported component is world-famous, with long service and good quality.
Main Technical Parameters:
Description Unit Parameter
Nominal Force Punching Unit
KN
200
Stretching Unit 200
Shearing Unit 200
Location Speed of X-axis m/min 30
Max Stroke of X-axis mm 1200
Work Stroke Punching Unit mm 15
Shearing Unit 20
Stretching Unit 30
Pitch Control Accuracy mm/m < ±0.1
Beat Frequency Punching Unit Time/min 50
Shearing Unit 30
Stretching Unit 25
Processing Profile Length mm ≤6000
Width 120-140
(customizable)
Thickness 3-4.5
(customizable)
Host Area (L×W) mm 2330 × 1660
Max Hydraulic Press MPa 31.5
Total Power KW 6
Total Weight KG 2200

Loading container
