7" 1024*600 Resolution for Interactive Device LCD Touch Screen Display

Product Description

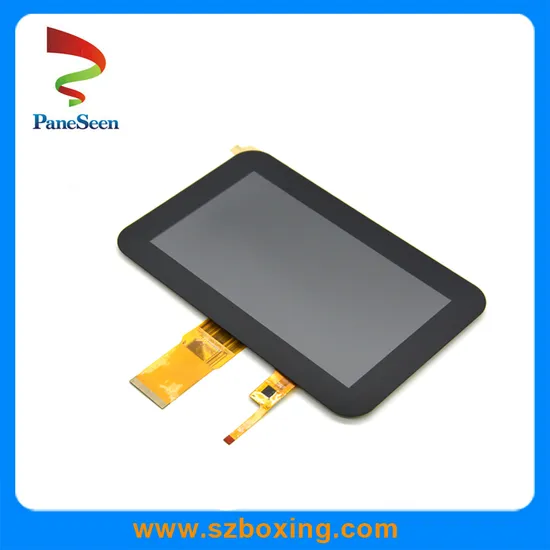

7" 1024*600 Resolution LCD Touchscreen display for interactive device
1. Introduction PS070BAHA88CP is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC, a backlight and CTP unit. The 7inch display area contains 1024 x (RGB) x 600 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.

Item	Contents	Unit
LCD Type	TFT	-
Display color	16.7M	-
Viewing Direction	All	O'Clock
Operating temperature	-20~+70	ºC
Storage temperature	-30~+80	ºC
Module size	Refer to outline drawing	mm
Active Area(W×H)	154.21 X 85.92	mm
Number of Dots	1024×600	dots
LCD Controller	HX8282A11 & HX8696A01	-
CTP Controller	ILI2511	-
Power Supply Voltage	3.3	V
Outline Dimensions	Refer to the outline drawing	-
Backlight	3S10P-LEDs (white)	pcs
Weight	-	g
Data Transfer	LVDS	-
Interface	LVDS	-
Polarizer Mode	Transmissive/negative	-

2. Optical Specifications
3. Product drawing
4. Technological Process:
5. Application:
6. Company Advantage:
7. Quality Control:
- Our technicians and QC team test the original products one by one to ensure every product is perfect before package and shipment!
- We will test goods strictly according to our standard inspection before shipment.If exceed this standard, clients can ask for returning and get new.
8. Packaging and Delivery:
1) Payment Terms: T/T, Paypal
2) Shipping: Prompt delivery by UPS, EMS, DHL, TNT, FedEx, or by air.
3) Delivery time: 7-10 days for goods in stock, 3-4 weeks for mass production goods.
4) Packaging Details: Packed in anti-static bags with foam boxes to ensure safety in transportation.
5) Delivery Details: 1 to 30 days. The delivery fee is up to the weight and volume of the products.
6) Samples: Our company offers samples for quality tests or other business purposes, but we kindly ask you to pay for samples and the freight.
9. Warranty:
^ The period is within 12 months from the date of shipping out under normal using and storage conditions.

---
