US$4,690.00-7,699.00
|
1 Piece
(MOQ)
|
Basic Info.
Application Area
Chemical
Vacuum Level
-0.08 ~ -0.09 MPa
Mixer Type
Planetary Mixer
Operating type
Continuous Operating
Mixing Drum Shape
Ball Mill Jar
Transport Package
Wooden Case
Specification
330mmx320mmx570mm(L x W x H)
Production Capacity
100pieces/Month
Product Description
Programmable compact dual-shaft planetary vacuum mixer for sale
Introduction of planetary vacuum mixer:

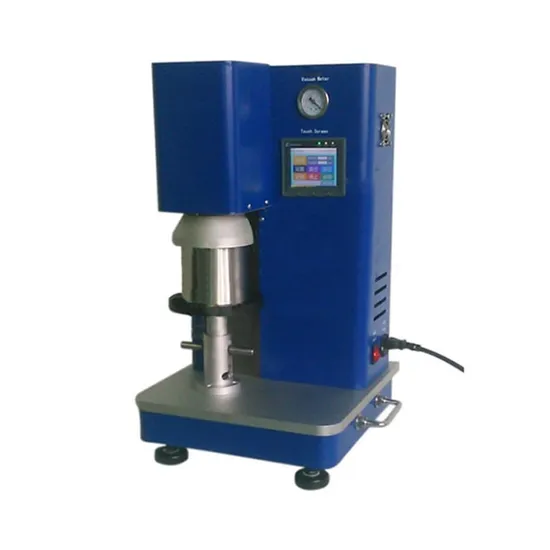

CY-MSK-SFM-16 is a compact dual-shaft planetary vacuum mixer. Compared to single shaft models, the dual shaft mixer comes with three segments programmable mixing speed from 0 - 600 rpm, which provides more uniform slurry mixing. It has a built-in pump for removing the gas bubble, which can vacuum the mixing container to -0.08 MPa. CY-MSK-SFM-16 is a high-quality mixer tool for preparing battery electrode paste and various ceramic materials in a research lab. (heating container is optional upto 200ºC). It is compact to put in the glovebox with Ar and N2 atmosphere.
Specifications of planetary vacuum mixer:
Voltage Input & Power | 24 VDC input voltage One UL listed 100-240 VAC IN, 24 VDC OUT power adapter is included 120W, 24VDC motor |
Rotary Speed | 0 - 600 rpm |
Slurry Viscosity | max. 10000 cp @ 600 rpm |
Mixing Container | One 150 mL stainless steel vacuum sealed container is included (minimum loading required is 50mL) Dual helical ribbon mixing blades are built on the lid of the container. 500 mL SS container, 150mL SS container and 50mL SS container is available at extra cost |
Vacuum Pump | Built-in single stage vacuum pump Vacuum Level: -0.08 ~ -0.09 MPa |
Control Panel | 3.5" color touch screen control allows easy setting of parameters such as mixing speed, mixing time, vacuum on/off Mixing Time: 0 - 600 minute Mixing Speed: 0 - 600 RPM and 3 segments programmable Note: Max. mixing speed depends on slurry viscosity. Max.10000mPa.s is allowed at 600 rpm. Lower speed will be required for more sticky slurry |
Heating Container with Temp. Control' (Optional) | The heating container is available at an additional cost. Please contact us for a quote. The heating container can be heated up to 200°C with precision temperature control for heated vacuum mixing. Water cooling integration is required for protecting gear We suggest using the EQ-KJ5000 Series recirculating water chiller as a cooling system. Protective shielding only included with the Heating Jet option. |
Dimensions | 330 mm x 320 mm × 570 mm (L x W x H) |
Net Weight | 70 lbs |
Warranty | One year limited with lifetime technical support |
Founded in 2005, Zhengzhou CY Scientific Instrument Co., Ltd. is a company specializing in the development and production of laboratory technology research equipment. The products are mixed, pressed, burned, cut, ground, polished, coated, analytical equipment and related consumables. Products include laboratory sintering equipment, coating equipment and so on. At present, it has been exported to 25 countries and regions such as the United States, Europe, and Southeast Asia, and has been well received by various scientific research units.
We have a mature technology research and development team, the number of technicians is 33, the company has 150 people, more than 500 square meters of office space, the factory covers an area of about 1,500 square meters located in Zhengzhou High-tech Zone Electronic Industrial Park. The products are mainly located in the research market, serving scientific research in the labs of universities and colleges, and can also customize products according to your needs.
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. How is your company's product after-sales service system?
A. The product warranty period is 12 months, we can provide lifetime maintenance. We have professional pre-sales and after-sales departments that can respond to you within 24 hours to resolve any technical issues.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. If the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How to pay?
A.T / T, L / C, D / P, etc., it is recommended to use ****** Trade Guarantee.
Q. How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging 2. Express, air, sea shipping according to customer requirements, find the most suitable way.
More questions, please contact customer service.
>>
