US$1,400.00-1,500.00
|
1 Piece
(MOQ)
|
Basic Info.
Application
Liquid with Suspended Solids, Powder, Viscous Fluid, Liquid, Powder
Application Area
Horizontal Mixer
Key Selling Points
Easy to Operate
Mixing Drum Shape
Circular Groove
Operating type
Continuous Operating
Transport Package
According to Customer Requirements
Specification
Can be customized
Production Capacity
20 Items Per Month
Product Description

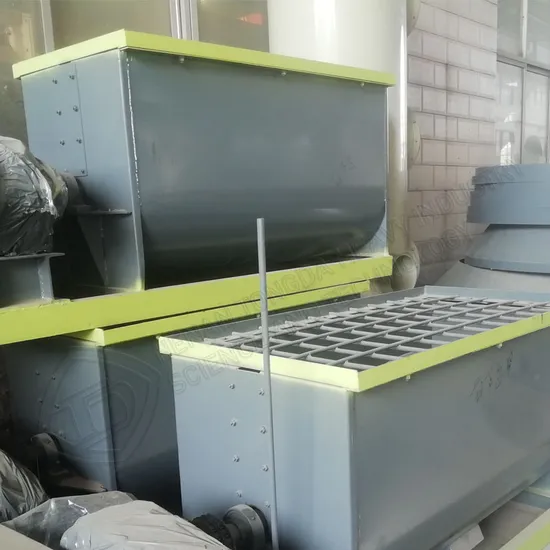

High efficiency production line fertilizer horizontal mixer biomass organic fertilizer powder blender machine
Product introduction
This series of horizontal mixing(blending) machine is a new generation of mixing equipment which developed by our company. It has high mixing degree and less residue. It is suitable for mixing organic and inorganic fertilizer. The specific features as following: the material can be fully mixed, thus improving the mixing uniformity; the new rotor structure be used to make the gap between the rotor and the casing close to zero, thus effectively reducing the residual amount the material;the special rotor design of the machine can also break the larger material, the overall structure is more reasonable, the appearance is beautiful, and the operation and maintenance are convenient.
Performance characteristics
1. Fast mixing speed with good uniformity.
2. Widely application
3. Fast speed discharging and less residue.
Working principle
Horizontal barrel body with rotating reverse the blade, the pulp into a certain angle of the material along the axial, radial cycle stir, so that the material quickly mixed. It shortens the mixing period with more efficient. Even if the material has a specific gravity and difference particle size, it will also achieve a good mixing effect in the staggered arrangement of the mixing blade fast and by the violent throwing thrown.
Model | TDWJ-7015 | TDWJ-9015 | TDWJ-1630 |
Dimensions(mm) | 2350*1200*1000 | 2300*1200*1000 | 3950*1720*2100 |
Motor Power(kw) | 7.5 | 11 | 22 |
Speed Reducer Model | ZQ350-23.34 | ZQ350-23.34 | ZQ500-48.57 |
Stirring Speed(r/min) | 46 | 39 | 21 |
Main Plate Thickness(mm) | 4 | 4 | 10 |
Capacity(t/h) | 2-3 | 3-5 | 10-15 |
>>
