Circumferential Seam Welding Machine with Automatic Tracker

Product Description

Circumferential Seam Welding Machine with Automatic Tracker
GetWeld Automated circular seam MIG inverter welding mathine are widely used by tank manufacturers as stand-alone machine or as part of assembly line operations.
Such circumferential lathe welder are widely used in production of solar water heater tank, enamel tank, LPG cylinder, large capacity welded insulated cylinder, storage tank, LNG gas station and so on.
Completely customized to meet customer's requirements.

Our Automated circular seam MIG inverter welding mathine are with


Specifacations

Features	1. 1 or 2 torches are usually built in. 2. Multiple torches up to 4-5 also could be integrated into this machine based on qnty. of welding seam and productivity. 3. Adjustable for various thickness 4. Precision longitudinal track for smooth travel 5. Change size automatically or manually
Applications	Our precision Circumferential Lathe Welder are most commonly used in tank production. High pressure type solar water heater tank Low-pressure type solar water heater tank Enamel tank for electrical water heater LPG cylinder LNG gas station Cryoease Storage tank
Range of working piece	Thickness of working piece: 0.3mm-10mm Dia. of working piece: 200mm-2500mm
Custom Designed	For any welders we fabricate and install, we can incorporate the controls system necessary. We program and wire electrical controls such as: Programmable Logic Controllers (PLCs) Standard Push Button Controls Emergency Stop Buttons Safety Sensors Audiovisual Alarms Data Acquisition We use predominantly Allen-Bradley PLCs with touch-screen or panel view displays but we will incorporate any brand or type of controls our customers specify

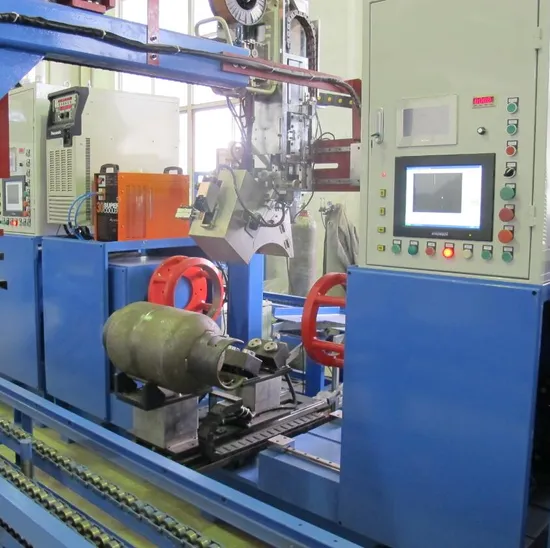

LPG Tank Tracking Welding Machine
Our research and development of the new patent tracking system is the most advanced anti-jamming laser. A super linear laser with specific wavelength is accumulated in the welding position.The line laser brightness is larger than welding arc light at this time. The industrial camera collects the laser shape of the weld line formed by the weld position and inputs the computer. Through the analysis, the position of the left and right weld and the high and low positions are obtained and output to the actuator to guide or track the correction. It has the advantages of anti arc, smoke and dust, splash, spot welding and electromagnetic interference. Tracking and welding are basically in the same location and real-time tracking.

Technology Parameter:
1. The power of this machine is 1000W.
2. it can adapt to track the left and right distance 30mm, up or down 30mm, or customize special needs.
3. The tracking speed is in line with the speed requirement of ring welding, or greater than 2 m/min.
4. It is suitable for lap or splice welding with weld more than 1mm. The width of the corner weld seam is not limited.
5. Recognition accuracy: 0.5mm
6. The response speed of weld recognition: 0.2S.
7. Support welding speed: 0~2000mm/min
8. Support welding types: gas shielded arc welding, argon arc welding, plasma welding and laser welding.
9,Welding seam form

The whole system including computer, industrial camera, laser line, X/Y adjusting mechanism, hood, software etc.
Now, the system is widely used in welding production of stainless steel, sheet metal and process decorative parts as welding seam tracking and guidance.

Advantages:
1. It can track both left and right, up and down without touchingat the same time, and ensure that the welding position is accurate and the welding current is stable
2. Due to the use of special laser and photo control, it has super strong anti-interference and high stability.
3. The interval between tracking point and welding point is 2cm, real-time tracking.
4. Don't need slag plate, so that basically no need to maintain, which saves the frequent change of glass or slag blocking plate, and affects the welding quality and work efficiency.
5. The installation of camera and laser line with new patented technology ensures the advanced reliability of the whole device.
6. Because the welding seam tracking device is mounted on the welding torch, it does not affect the adjustment of the welding torchpositional parameter, and then does not bring any influence to the welding process.
Our Services With our production and export experience , our team of engineers can custom design equipment.
We can tie-in our equipment with a current assembly line or machinery or supply an entire assembly line.
We also provide detailed technical drawings, user manual, work procedure and maintenance manual throughout the design, fabrication and installation processes

---
