US$32,000.00-33,000.00
|
1 Set
(MOQ)
|
Basic Info.
Processing Accessory
Chuck CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Automatic Grade
Semiautomatic
Certification
CE, ISO 9001
Max. Swing Dia. Over Bed
350mm
Max. Swing Dia. Over Slide
120mm
Max. Turning Length
250mm
Spindle End Type
A2-5/A2-6
Spindle Max. Bar Through Dia.
44/51mm
Spindle Motor Powerthrough Dia.
11kw
Spindle Chuck Size
5′′*/6′′chuck
Repeat Positioning Accuracy(X/Z)
0.005mm
Tool Turret Type
8t Hydraulic Tool Turret& 4+4 Independent Live Too
Transport Package
Plywood Case/Steel Pallet
Specification
2270*1940*2070mm
Production Capacity
480 Unit/Year
Packaging & Delivery
Package Size
250.00cm * 320.00cm * 250.00cm
Package Gross Weight
250.000kg
Product Description
CNC mould making metalworking cutting machine
- Adopt TAIWAN technology, most parts adopt GERMANY/TAIWAN brand
- Adopt 30°mono-block slant bed design,super-heavy bed, high stability
- Adopt modularization design, easy for various especial configuration choice, such as parts catcher etc
- Adopt MEEHANITE class cast iron, after aging treatment, small distortion, good torsional strength, good heat stability
- Base adopt multilayer strengthening rib, ensure bed's strength and stability
- Adopt high precision integral spindle unit, spindle motor adopt high performance servo motor, big output torque,
high speed,wide adjustment range
- Adopt high precision C3 class pre-stretched ball screw(double nuts), coupled with feeding motor directly by linkager,
no gap, high transmission rigidity
- Mount 8T hydraulic tool turret and 4+4 Independent live tools with Y axes
Details:
| Item | Specification | Unit | BL-H6Y |
| Capacity | Collet chuck size | / | 6'' | 8'' |
| Max. swing dia. over bed | mm | Φ350 |
| Max. turning length | mm | 250 |
| Max. turning dia. | mm | Φ200 |
| Standard turning dia. | mm | Φ150 |
| Spindle | Spindle bore | Mm | Φ56 | Φ66 |
| Spindle end type | / | A2-5 | A2-6 |
| Spindle speed | rpm | 4500 | 4000 |
| Max. bar through dia. | mm | 44 | 51 |
| Spindle motor power | kw | 11 |
| X/Z axes | X/Y/Z axes linear guideway width | mm | 30/30/30 |
| X,Y,Z axes ball screw O.D./Pitch | mm | Φ32/10,Φ25/10,Φ32/10 |
| X axes travel | mm | 350 |
| Y axes travel | mm | 220 |
| Z axes travel | mm | 300 |
| X/Y/Z axes rapid moving speed | m/min | 24/16/24 |
| Tool turret | Tool turret type | / | 8T Hydraulic tool turret&
4+4 Independent live tool group with Y axes |
| Live tool collet size | / | ER25 |
| Live tool speed | rpm | 3000 |
| Tool shank size | mm | 20×20, Φ25 |
| Tailstock | Tailstock | / | N/A |
| Accuracy | Positioning accuracy(X/Y/Z) | mm | 0.008/1000 |
| Repeat positioning accuracy(X/Y/Z) | mm | ≤0.005 |
| Others | Overall size | mm | 2270×1940×2070 |
| N.W. | kg | 3000 |
Main parts list:
| Item | Brand |
| Spindle unit | CHIAN top brand synchronous servo electro-spindle/TAIWAN-ROYAL |
| Tool turret | TAIWAN-GSA/YULIN/SWIFT |
| Ball screw | TAIWAN-HIWIN C3 class |
| Ball screw bearing | GERMANY-FAG |
| Linear guideway | TAIWAN-HIWIN |
| Lubrication system | TAIWAN-ISHAN |
| Rotary oil cylinder&chuck | TAIWAN-AUTOGRIP |
| Hydraulic parts | TAIWAN/JAPAN |
| Heat exchanger | Joint-venture |

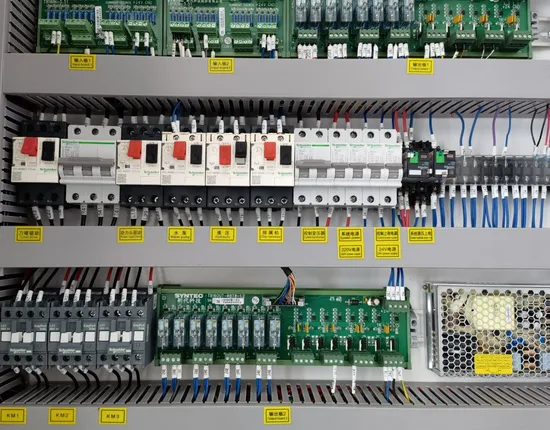

| Main electricity parts | FRANCE-SCHNEIDER |
Standard configuration: - SYNTEC 21TB CNC controller
- Hydraulic collet chuck
- 8T hydraulic tool turret
- 4+4 Independent live tool group with Y axes
Optional configuration: - FANUC 0i TF CNC controller
- Automatic chip conveyor
- Parts catcher
- Bar feeder
