3060 High Precision and High Efficiency Automatic Surface Grinding Machine

Product Description

Product Description
Features of surface grinding machine
Engineered for excellence, our CNC Grinding Machine boasts high precision, exceptional rigidity, an advanced automatic lubrication system, and is perfectly suitable for intricate molding grinding tasks.
High Precision and Rigidity: The core casting of this surface grinding machine is constructed from premium cast iron, which undergoes annealing to effectively eliminate internal stress, ensuring long-term mechanical precision stability. Enhanced with a Taiwan type direct spindle and P4 class ultra-precision roller bearings, it achieves low noise and vibration even at high speeds, providing substantial torque essential for precise forming grinding.
Automatic Lubrication System: The surface grinder incorporates an advanced automatic lubrication system with an electromagnetic pump, expertly designed to enforce oil injection and facilitate automatic circulation. This system ensures effective lubrication of each screw and sliding surface, significantly boosting the machine's operational efficiency and longevity.
Product Parameters
Surface Grinding Machine Features:
1. The machine's primary castings are fabricated from high-quality cast iron, treated with annealing and shock aging techniques to remove internal stress, vastly enhancing stability and resistance to deformation.
2. To amplify work efficiency, the machine is built with a robust and stable fuselage, perfectly meeting the requirements for both heavy cutting and fine grinding.
3. The guide rail is layered with high-grade wear-resistant adhesive, and precision shovel flowers ensure long-lasting accuracy and durability.
4. Spindle arm end swing precision is maintained at 0.003mm.
5. Equipped with precision ball screws, delivering lighter, more accurate, and more durable performance.
6. Key components of the hydraulic system are independently designed to ensure low vibration and low noise.
7. Designed with a rational cable pipeline layout for enhanced durability and reliability.
8. Features an advanced lubricating oil road boot self-test, fault alarm system, and automatic cycling, integrated with a pressure sensor to ensure continuous lubrication of the guide rail.

surface grinding machine		Model number	3060AH/AHR/AHD/NC/CNC	4080AH/AHR/AHD/NC/CNC
		unit	specification	specification
Table area		mm	600*300	800*400
Maximum left and right movement		mm	600	800
Maximum amount of movement before and after		mm	300	400
Maximum distance from table to spindle center		mm	540	600
Maximum weight of table		kg	350	350
Flat gloss			R0.25	R0.25
Table T-slot		mm*N	14*1	14*3
Table speed		m/min	5--23	5--25
Front and rear hand wheel feed	1 frame	mm	0.02	0.02
Front and rear hand wheel feed	1 round	mm	4	5
Automatic feed front and rear		mm	0.1-8
Dart back and forth	50HZ	mm/min	790	990
	60HZ	mm/min	950	1100
Grinding wheel size	Outside diameter x width x inside diameter	mm	ø355*20~40*127	ø355*20~45*127
Spindle speed	50HZ	R.P.M	1450	1450
Spindle speed	60HZ	R.P.M	1740	1800
Upper and lower hand wheel feed	1 frame	mm	0.01	0.001
	1 turn around	mm	2	0.5
Automatic feed rate		mm	/	0.005-0.025
Rapid up and down movement		mm/min	/	230
Spindle motor		HxP	5*4	7.5*4
Up and down drive motor		HxP	/	750W
Hydraulic motor		HxP	2*4	2*4
Flush motor		HxP	1/8*2	1/8*2
Front and rear drive motor		HxP	40W	150W
Machine height		mm	1830	2600
Floor space		mm	3500*2500	2360*2190
Weight (approximate)		kg	2100	2900

Remark
AH Left and right hydraulic, front and back step operation, manual up and down adjustment.
AHR Left and right hydraulic, front and back step operation, fast lift adjustment for up and down.
AHD Left and right hydraulic, front and rear step operation, servo automatic control for up and down.
NC Left and right hydraulic, front and rear servo operation, servo automatic control for up and down.
CNC Featuring X, Y, Z, three-axis CNC control for unparalleled precision.

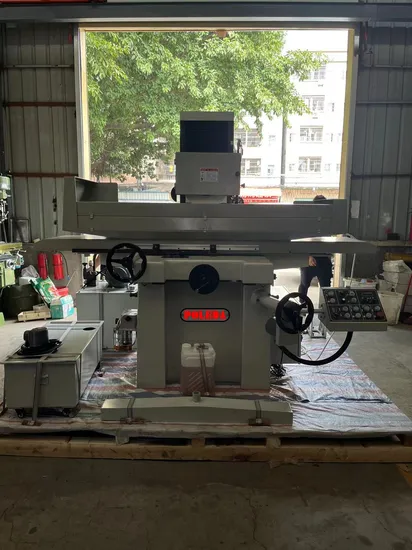

Detailed Photos
Certifications

FAQ
1.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on.For some normal items, we have in stock, the MOQ is 1 set.
2.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained.Moreover,the principle we always maintain is "to provide customers better quality, better price,and better service".
3.What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Machine, Lathe Machine , Milling Machine,Grinding Machine ,Vertical Machining Center ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine and so on .
4. What is your trade terms?
A :Ex-works FOB, CFR and CIF all acceptable.
5.What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
6.What CNC system do you use?
A:FANUC, SIEMENS, MITSUBISHI, SYNTEC, HCN .It depends on your choice.
7.How can I choose the most suitable machines?
A:Send us the products drawings and applications ,we will choose the most suitable machines for you.
8.what kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition. Customized package can be acceptable.
9.Can your plant do OEM?
A:Yes it is no problem. We can do OEM and ODM for any customers.
10.How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for mac.

---
