Basic Info.
Processing Accessory
Manual Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
4-Way Toolpost
Controlling Mode
Artificial
Certification
GS, CE, RoHS, ISO 9001
Name
Universal Big Bore Precision Lathe Machine
Distance Between Centers
3000mm
Swing Over Cross Slide
570mm
Tool Post Type
4-Way Toolpost
Transport Package
Wooden Case
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
324.00cm * 114.00cm * 184.00cm
Package Gross Weight
3060.000kg
Product Description

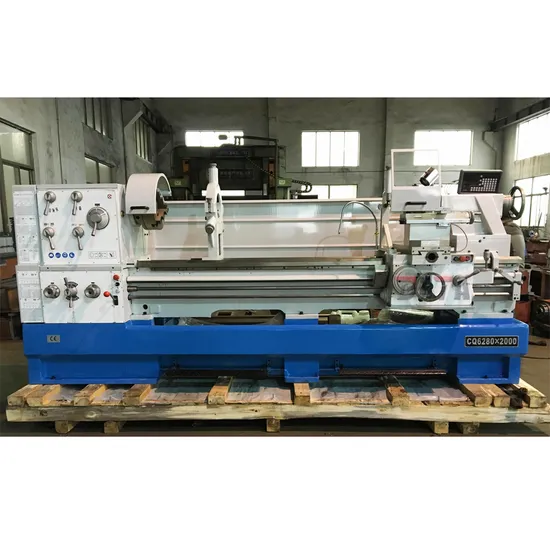

Universal Big Bore Precision Lathe Machine For Metal Cutting C6280
main feature:
1. flat structure, beautiful appearance
2. After hardening hard gears, precision grinding
3. Intermediate frequency quenching treatment of the rail surface
4. Dynamic balance spindle components
5. Multiple choices: metric, imperial, right handwheel, multiple voltage frequencies, guards with "CE" requirements, fast forward
6. The machine tool will undergo strict examination before leaving the factory. After the inspection personnel use the equipment to test, the quality inspection leader will review it again. After the indicators are qualified, the factory will be allowed to leave the factory.
| Model | C6280 |
| Distance between centers | 1500/2000/3000mm |
| Swing over bed | 800mm |
| Swing over cross slide | 570mm |
| Width of bed | 400mm |
| Spindle bore | 105mm |
| Range of spindle speeds | 25-1600rpm |
| Range of inch threads | 7/16~80T.P.I. |
| Range of metric threads | 0.45~120mm |
| Top slide travel | 230mm |
| Cross slide travel | 420mm |
| Tailstock quill travel | 235mm |
| Taper of tailstock quill | MT5 |
| Motor | 7.5kw |
| Packing size | 3240/3740/4740*1140*1840mm |
| Net /Gross weight | 3060/3535 kg, 3345/3835 kg, 3710/4310 kg |
TENGZHOU BETA CO.,LTD. is a highly reputed professional Machine Tool manufacturer and exporter in CHINA. We focus on complete seals solution include seal making CNC machine, seal processing software, seal materials and cutting tools, the annual output quantity up to more than 1000 units.
Having focused on international market. We have placed the priority on both machines' quality and service. All machines will thoroughly follow every stage during manufacturing, assembling, final testing, packing and shipping, we promise that every provided machine will be strictly tested and be ready to operate before delivery.
>>
