Car Bus Air Conditioning Radiator Aluminum Copper Separator Machine

Product Description

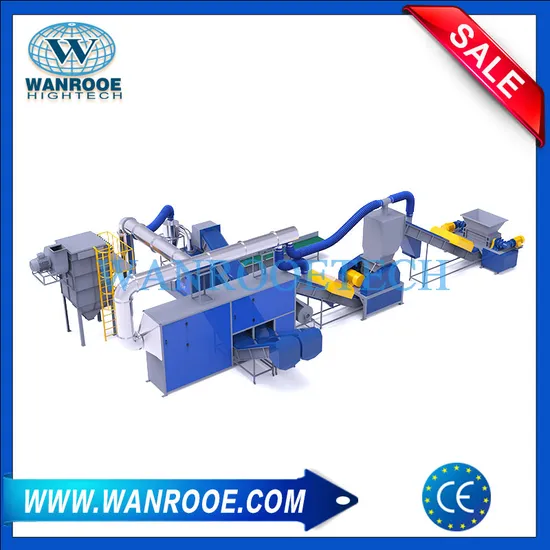

Scrap Air Conditioner Radiator Recycling Line Automatic Copper and Aluminum Separator Machine
Application:
The waste radiator recycling plant can process all kinds of large blocks of the radiator(copper and aluminum water tank) or motor rotor(with axle)≤15cm.
Radiator Shredder is used to Scrap metal such as radiators, copper and aluminum water tanks, condensers, waste air conditioners, old radiators, wastewater tanks, internal copper and aluminum of automobile parts, disassembly and separation, etc.
Description:
The scrap radiator recycling plant can be processing all kinds of large blocks of the radiator(copper and aluminum water box) or motor rotor(with axle)≤15cm. The equipment has features of the new design, nice appearance, unique and large capacity. Whole plant PLC controlling, one-time feeding, multi-machine cooperated processing; with automatic shutdown device and the overload automatic alarm device. The successful development of the processing line, greatly liberate the productive forces, improve the metal recycling quality. Most importantly, it solves the problem of dust overflow effectively, reducing the pollution to the air.
Double Shaft Shredder with loading hoppers, equipped with high-quality cutters with low rotation speed for lower energy consumption and noise reduction.;It incorporates two counter-rotating shafts that intermesh with each other (2 shafts with sharp elements constituted by sharp-corners disks provided with hooks; Every hook has the task to hook the product and drive-it by the action of the two counter-rotating shafts). The material is powerfully torn and shredded by the talons of the cuttings discs. A specially designed rotor makes the shredder be extremely wearing resistant.
Technical Features:
1.Our shredders can be employed as either a primary or secondary shredder and can be seen working anywhere from the waste management company to biofuel producers;
2.Dual shafted, slow-speed, high-torque waste shredder with hardened steel cutters;
3.The two cutting rotors powerfully grab the feed material, and no matter the feed material is a large piece of hard plastic or heavy tires, this machine can easily shred them into small pieces;
4.Double shaft shredder is able to process a number of different materials; shredder is designed with a powerful engine, long working length, and aggressive input, Internal feeding volume bigger than traditional and common single shaft shredder machine and allow you using a forklift truck to feed.
5.Heavy structure: the frame and structure of our shredders are made of high-thickness sheets and tubular. Blades are manufactured from high-quality steel, suitable for shredding tough materials and for extra long life;
6.Depending on the requirement, these discs (blades) are available in a wide range of quantities, qualities, and shapes with the new double-shaft shredder;
7.Any overloads caused by foreign material are sensed by the PLC controller and cause the shaft rotation to stop and reverse direction to clear the foreign matter, and then resume;
8.Cutters removal and replacement can be carried out safely and simply.
9.Our shredders Use a planetary reducer, not a traditional gearbox, and the planetary gearbox has the following advantages: High Efficiency, Greater Stability, Compact Size, Higher Torque Density, Cost-Effective Precision, High Radial Loads.
Process:
Parameter:

Model	Capacity	Sorting Efficiency	Dust removing efficiency	Power
PNMR-1000	1000 Kg/H	97%	99%	55*2 Kw
PNMR-2000	2000 Kg/H	97%	99%	75*2 Kw
PNMR-3000	3000 Kg/H	97%	99%	115*2 Kw
PNMR-5000	5000 Kg/H	97%	99%	145*2 Kw

Details:
Feedback:
Our Service:
1. One-year guarantee for whole machine. 2. 24 hours technical support. 3. Our engineers can provide service overseas. The service is free, but the charge of round air-tickets, food and hotel is to the customer's account. 4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price. 5. We also can provide training service which help operators handle the machine well.

---
