Cutting-Edge Technology Grinding Machine with Syntec CNC and Server Propel

Product Description

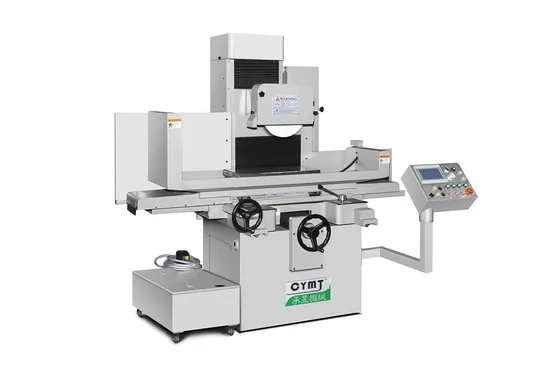

250/2550CNC Surface Grinding MachineThree Axies 250CNC Multifunction Grinding Machine Tool
Our commitment to excellence ensures that Cheng Yu Machinery Technology Co., Ltd. embraces a dynamic policy of continuous product enhancement. We reserve the right to refine and innovate our product specifications, mechanics, and designs without prior notice, ensuring our offerings remain at the forefront of technology and innovation.

	parameter	unit	CNC-250	CNC-2550
general picture	Table size (x*y)	mm	200×500	250*500
	X axis travel	mm	580	580
	Y axis travel	mm	230	280
	Max center of wheel to table	mm	380	380
	Maximum load	kg	200	200
Table	Table T cell specification	mm×N	14×1	14×1
	Table speed	m/min	0-25	0-25
Y axis	Minimum feed	mm	0.001	0.001
	Single feed		0.1~10	0.1~10
	Fast moving speed	mm/min	0~1200	0~1200
Z axis	Minimum feed	mm	0.001/0.01	0.001/0.01
	Fast moving speed	mm/min	0~800	0~800
grinding	grinding wheel size max	mm	Φ200×Φ31.75×19
	grinding wheel speed	R.P.M	0~3600	0~3600
motor	spindle motor	HXP	2×2	2×2
	the Z axis motor	W	750	750
	the Y axis motor	W	750	750
	the X axis motor	W	1500	1500
	cooling motor	W	90	90
Size	height of machine	mm	2000	2000
	floor space	mm	2000×1350	2000×1450
	weight(about)	kg	1450	1550

Rooted in Dongguan City, Guangdong Province, Cheng Yu Machinery Technology Co., Ltd. draws upon 30 years of Taiwanese expertise in crafting precision grinding machines. This rich history has cultivated a team of seasoned technicians, steeped in tradition and driven by cutting-edge technology. As CNC machine tools evolve at a breathtaking pace, they are increasingly characterized by high-speed, high-precision, and multifaceted capabilities. The future of this industry is driven by intelligent design, open systems, parallel processing, and a commitment to sustainability, in tune with the latest trends in CNC technology. At Dongguan Chengyu Machinery Technology Co., Ltd., we pride ourselves on being a beacon of innovation and reliability in the machine tool industry. Anchored by our philosophy of 'technology, innovation, and reliability,' our 'meticulous' quality policy drives us to serve our customers with premium products. Our approach is grounded in understanding the customer's process, production type, and quality requirements. We channel this insight into designing and manufacturing cutting-edge products, continuously enhancing their applicability, and expanding our footprint in the numerical control industry. Our goal is to achieve unparalleled automation, precision, and quality, supported by a robust quality management system, state-of-the-art equipment, and unmatched technical expertise. In a dynamic market landscape, Chengyu Machinery is at the forefront of designing and manufacturing high-precision CNC surface grinding machines, CNC forming machines, four-axis punch grinders, vertical slider grinders, and gantry rail grinders. We also specialize in creating industrial robots, automated production lines, and integrated applications. Here's a glimpse into our CNC grinding machine series: I. HS Series 618 / 250 / 3060 / 4080 / 40100 (Offering both servo and hydraulic types for tailored performance) Processing Capacity: Expertly handles surface grinding and grooving with finesse. Featuring our patented hydraulic control system for optimal stability and precision (hydraulic type). Functionality: Equipped with sophisticated grinding programs for flat surfaces and groove cutting, delivering precision every time. Customizable Feed Modes: Choose from front, back, left, or right orientations. Each grinding program stores the preferred feed mode for seamless operation. Safety-First Design: Includes a grinding wheel overload mechanism that powers down automatically to prevent damage. II. (Available in both servo and hydraulic configurations to suit diverse needs) Processing Capacity: Capable of surface grinding, grooving, and sophisticated combined scheduling tasks with ease. Our advanced hydraulic control system ensures precision and reliability (hydraulic type). Functionality: Versatile grinding programs including surface, groove, sole, side grinding, and unequal displacement grinding, catering to varied applications. Grinding Wheel Dressing: Automatically performs bottom plane dressing based on pre-set rough and fine grinding parameters, with auto compensation for a flawless finish. Customizable Feed Modes: Front, back, left, or right options available, with program-specific memory for each feed mode. Precision Grooving: Offers equidistant and variable, non-equidistant grooving options for advanced applications. 3. Four-Axis CNC Grinding Machines: Available in horizontal and vertical models, offering versatility in application. Processing Types: Effortlessly manage arbitrary equal division and skipping tooth processing for complex grinding tasks. Innovative Waist Circle Processing: Input AB size for precise operations. Triangle Fillet Processing: Input inscribed circle size B and fillet size R for tailored shaping. Quadrilateral Fillet Processing: Enter side lengths A and B along with fillet size R for perfect geometry. Eccentric Circle Processing: Input eccentricity along with starting and ending diameters for custom designs. Circle: Seamlessly input your desired starting and ending diameters to achieve precision like never before. Arc: Simply enter the arc size and the rotation angle to craft beautiful arcs with ease and accuracy. Step Difference & Rotation Profile: Effortlessly manage step differences and rotation profiles to ensure flawless execution. Processing Schedule: Save your meticulously crafted processing schedule as a file for effortless retrieval and use in future projects.

---
