Sc Fiber Optic Connectors with Ferrules

Product Description

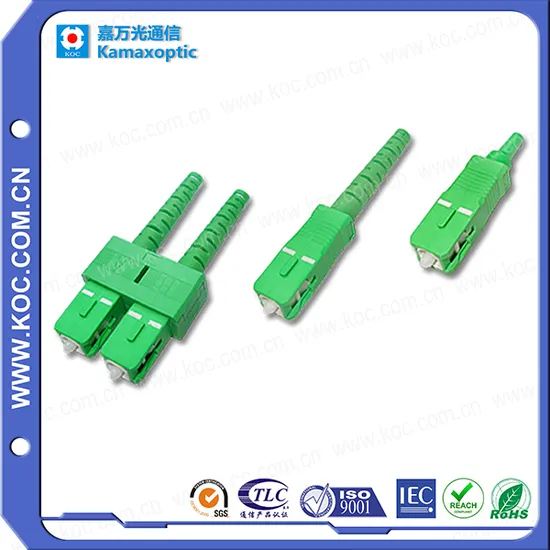

SC/APC fiber optical connectors with good price and good quality
BRIEF INTRODUCTION
The optical fiber connector is one of the most basic passive components in the optical fiber communication. There are difference ferrule materials (ceramic, plastic, metal), a variety of body and boot color to choose. Through the process of curing and polishing, etc., the connector is combined with various of fiber optic cable and made into different kinds of patchcord (jumper), which have been widely applied to the CATV system, communications system, FTTx system, Local Area Networks, Wide Area Networks, Metro,Test equipment, Active device termination and so on. The ARK has nearly 10 years of experience in producing connectors and all of the products are meet the Telcordia and IEC stander, the material compliance RoHS. If you have other special requirements, the ARK will be specifically for your customization to meet your needs.
Note: Ferrule with/without flange is available
SPECIFICATIONS

ITEM	PARAMETER
Applicative Connector Type	SC,LC,FC,ST,MU,D4,DIN
Fiber mode	Single mode	Multi-mode
Test wavelength	1310nm, 1550nm	850nm, 1300nm
Insertion Loss	typical≤0.20dB,Max≤0.30dB	typical≤0.15dB,Max≤0.25dB
Return Loss	UPC≥50.0dB,APC≥60.0dB	≥35.0dB
Durability	≤0.20dB typical change,1000 mating
Applicative cable OD.	∮0.9mm/∮1.8mm&∮2.0mm /∮3.0mm (MU only ∮0.9mm/∮2.0mm)
Connector Ferrule OD.	∮2.5mm:SC, FC,ST,DIN; ∮2.0mm:D4; ∮1.25mm:LC,MU
Angle BOOT	SC,LC(45 or 90 degree)
Operating Temperature	-20ºC to +70ºC
Storage Temperature	- 40ºC to +85ºC
Ferrule Specification	125.3+1/-0μm, Concentricity: ≤1.0μm	127+3/-0μm, Concentricity: ≤3.0μm

SC/APC ferrule polishing type:

APC APC

(Conical type) (Step type)

Features
1.Low insertion loss
2.Mechanicl properties conform to EN 50173 and EIA-568-A standards
3.Connector kits and components connectors are available.
4.For the connector,ceramic ferrule can provide APC type(conical type or step tye) and PC type.
5.All materials meet the RoHS standard.
Applications
1.Connector kits can be made into different kinds of patch-cord and pigtail.
2.Optical fiber communication system.
3.Actives and optical fiber sensors.
4.Communications machine rooms
5.FTTH.
6.Telecommunication network and CATV

---
