Product Details
Product Description
Product Description
Principle Characteristics

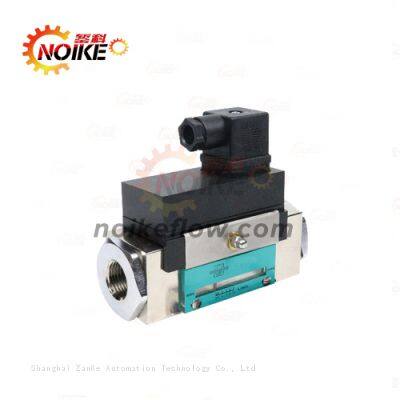

Pointer piston flow switch NC80C contains a magnetic piston support- ed by a precision spring that pushes the piston backwards and triggers an external microswitch or reed tube. Optional pointer flowmeter head displays instantaneous flow rate.
Internal all-metal structure, optional pointer flow switch, switch with high reliability and repeatability, mechanical part and electronic part completely isolated, high pressure resistance, normally open output,
large contact capacity, temperature and pressure compensation function.
Technical Parameters
Repeatability: ≤±3% range
Pressure: 200bar (stainless steel), 100bar (brass)
Output mode: normally open and closed
Switching capacity: 240Vac/110Vdc, 1.5A
Ambient temperature: -20... 70°C
Material：
Electronic enclosure: PC
Switch housing: stainless steel/brass plated with nickel
Spring: stainless steel
Protection level: IP65
Outgoing mode: M12*1
