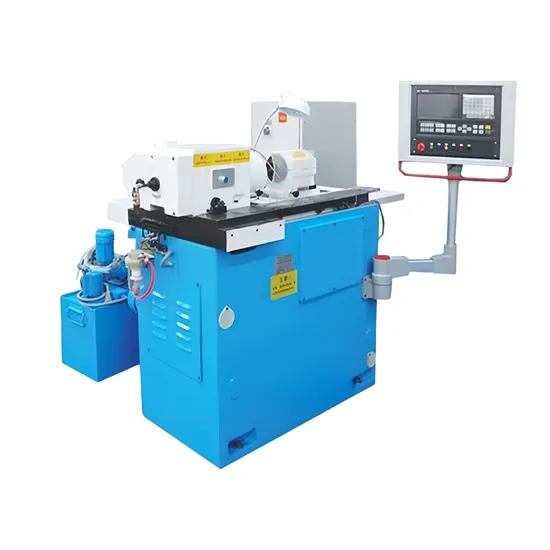

Factory Wholesale CNC Internal Grinding Machine for Cured and Face Grinder Mk215D

Product Description

Product Description

CNC internal grinding machine MK215D advantage
1. MK215D is a two axis cnc machine without fully enclosed cover. This model has an independent electrical box layout. The machine tool guide adopts a double V-shaped pre loaded, high-precision cross roller guide with high precision and good rigidity.

2. The machine tool adopts a high-speed and high-power electric grinding wheel shaft, powered by a static frequency converter, with low energy consumption and low noise. The feed mechanism adopts a servo motor to control the ball screw for feed and adjustment compensation. The electrical control system adopts Mitsubishi products from Japan.
3.The grinding parameters of the machine tool can be inputted and outputted through the touch screen, enabling human-machine dialogue and simple and convenient operation. The feed controlled by the machine tool servo system has the characteristics of high accuracy, small error, and fast speed.


Product Parameters

CNC Grinder Accuracy
Bore roundness	0.002mm
Bore cylindricity	0.003mm
Surface roughness of bore	Ra0.4um
Size dispersion of bore	0.01mm

CNC Internal Grinding Machine MK215CD main technical parameters
Grinding Inner Diameter		Φ3-Φ50	mm
Grinding Depth		80	mm
Max. Workpiece Diameter		220	mm
Workbench	Travel	500	mm
	Fast moving speed	10	m/min
	Min. feed	0.001	mm
Grinding Wheel Speed		24000/60000	rpm
Workpiece Speed		280/400/500/800	rpm
Workpiece Power		0.45/0.75	kw
Power		8	kw
Weight		2000	kg
Size		L1800*W1450*H1700	mm

Detailed Photos

Work Piece
