Product Description
Product Description

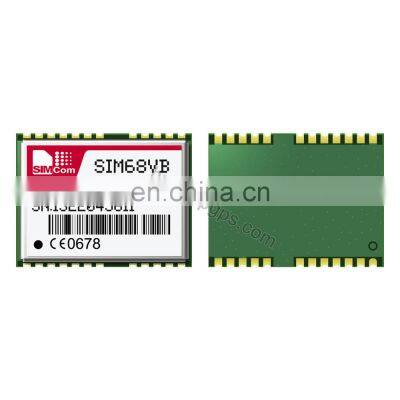

DescriptionSIMCom presents a high performance and reliable GNSS module - SIM68V. This is a standalone L1 frequency GNSS module in a SMT type with MTK's high sensitivity navigation engine, which allows customer to achieve industry’s high level sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lower power consumption.Mechanical data• Dimensions: 16*12.2*2.4 mm• Weight: 1gFeatures• Support GPS/GLONASS/Galileo/QZSS• Support EASYTM self-generated orbit prediction• Support EPOTM orbit prediction• Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)• Support DGPS (RTCM)• Support Jamming removing• Low-noise amplifier has been integratedInterfaces• Serial interfaces- UART- SPI/I2C• Digital I/O- EINT0 input- Pulse-per-second (PPS)• Protocols- NMEA- PMTKSupport products• SIM68 EVB KIT with USB V2.0 full speed interfaceElectrical data• Power supply: +2.8V ~4.3V• Backup power: +2.3V ~4.6V• Power consumption2,6- Acquisition: 31mA- Tracking: 30mA- AlwaysLocateTM: 340uA- Backup: 14μA• Antenna type- Active and Passive• Antenna power- External or internal VCC_RFPerformance data• Receiver type- 33 tracking / 99 acquisition- channel GNSS receiver• Max. update rate- 10Hz• Sensitivity1- Tracking: -165 dBm- Reacquisition: -160 dBm- Cold starts: -148 dBm• Time-To-First-Fix2- Cold starts: 28s- Warm starts: 26s- Hot starts: <1s- EPO Assist: 13s (CTTFF)• Accuracy- Automatic Position3: <2.5m CEP- Speed4: 0.1m/s• Operation temperature: -40℃~+85 ℃Certifications• CE• Rohs• REACH————————————————————1.Demonstrated in liberary2.All SV @ –130 dBm, GPS & GLONASS mode3.50% 24 hr static, -130dBm, GPS & GLONASS mode4.50%@ 30m/s5.When at -40℃~-30℃, the sensitivity will be somewhat worse6.@2.8V with a passive antennaWhy Choose UsFAQQ1. What is the minimum order quantity for your products?A1. Minimum order quantity starts from ONE piece.Q2. What's the quality of your products?A2. We have professional QA/QC team to ensure the quality before shipment. We provide 1 year warranty for all the new and original products.Q3. Is this product free of shipping or free samples?A3. Regularly the sample and shipping cost will be at the buyer's account. But in specific case, we may take these costs. Please kindly check with us the details by email. Thank you.All Categories4G 5G ModuleGPS ReceiverGPS AntennaGSM/LTE/WiFi AntennaGSM/LTE+GPS AntennaGNSS/GPS Module2G/3G/4G ModemGPS TrackerRF Coaxial / ConnectorSIMCard HolderSensorIC
>>
