US$2,000.00-5,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Automatic Grade
Full-Automatic
Transport Package
Plywood Case, Suitable Packaging
Specification
make to order
Product Description

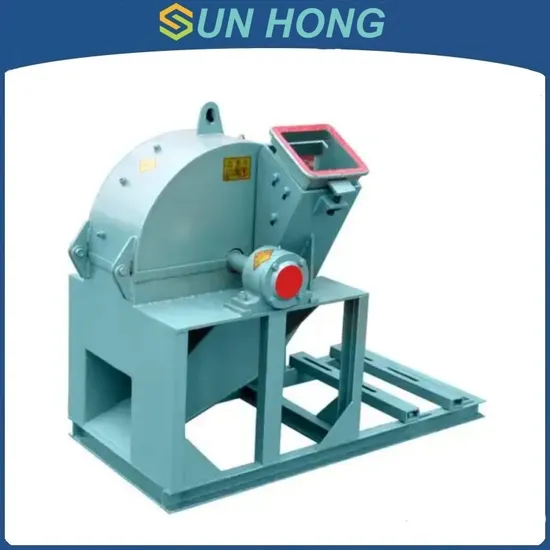

Disc Chippers
The disc chipper is a special equipment for preparing high-quality wood chips and is an ideal equipment for producing high-quality wood chips. It is suitable for paper mills, artificial boards and wood chip production bases. It can cut logs, small-diameter wood, etc. into high-quality industrial wood chips with uniform length, thickness, and even cuts. It can also cut branches, boards, etc.
Working Principle
The disc chipper cuts raw materials such as logs, small-diameter wood, laminations, plates and so on into high-quality industrial wood chips with uniform length, flat cut and even thickness through the rotation and cutting action of the disc. In order to adapt to the requirements of different industries on the length of wood chips, the length of wood chips can be adjusted within a certain range.
Finsihed Chipps
22mm Screen Mesh 15mm Screen Mesh 10mm Screen Mesh
8mm Screen Mesh 6mm Screen Mesh 4mm Screen Mesh Main Features
1. Compact and reasonable structure
2. Easy to operate, saving manpower and material resources
3. Large production capacity
4. The wood chips have a high passing rate
5. Low energy consumption per unit of wood chip output
Technical Parameter
Model No. | Knife disc dia. (mm)
| Productivity (Solic Volume) (m3 /h)
| Main motor power (kw)
| Discharge way
|
SH1710 | 950 | 5.5-8 | 75 | Upper |
SH1112 | 1220 | 15-20 | 110 | Upper |
SH1112-1 | 1220 | 15-20 | 110 | Lower |
SH1212 | 1220 | 15-20 | 90 | Upper |
SH1212A | 1220 | 15-20 | 110 | Lower |
SH1216 | 1600 | 25-45 | 220-250 | Upper |
Model No. | Knife disc dia. (mm) | Productivity (Solic Volume) (m3 /h) | Main motor power (kw) | Discharge way |
SH1216-1 | 1600 | 25-45 | 220 | Lower |
SH1216-2 | 1600 | 25-45 | 220-250 | Upper |
SH1216-3 | 1600 | 25-45 | 220 | Lower |
SH1216-4 | 1600 | 25-45 | 220 | Lower |
SH1218 | 1800 | 85 | 160*2 | Lower |
SH1220 | 2060 | 130 | 250*2 | Lower |
SH1225 | 2490 | 160 | 315*2 | Lower |
>>
