High Brightness 2.4 Inch Industrial LCD Panel Resolution 240X320 Interface MCU Color LCD Display Screen

Product Description

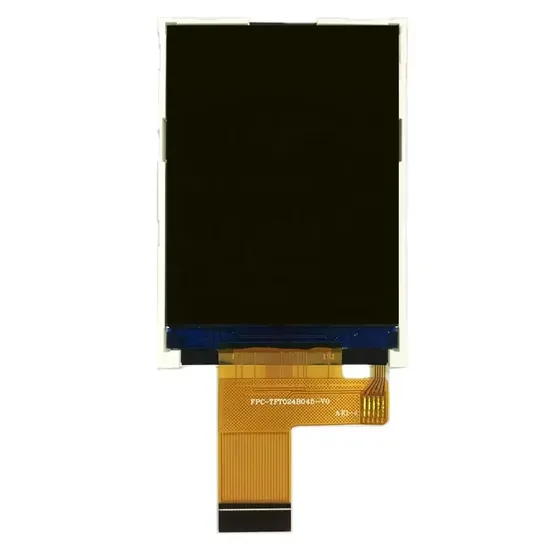

High Brightness 2.4 Inch Industrial LCD Panel Resolution 240X320 Interface MCU Color LCD Display Screen HC-240HI2201A is a 2.4 inch tft LCD display with optional resistive touch screen and capacitive touch screen control with a resolution of 240×320 pixels. This size TFT LCD monitor is portrait mode, TFT panel adopts IPS panel, left: 80/right: 80/up: 80/down: 80 degrees (typical).Optional RTP or CTP.
This HC-240HI2201A module has built-in ST7789V controller IC, supports MCU interface, the power supply voltage (VCC) range is 3.0V to 3.6V, the brightness is 380 nits (typ), and the contrast ratio is 800:1. This module is a communication Industrial ideal for equipment, medical equipment, etc. The module can operate at temperatures from -20°C to +70°C; its storage temperature range is -30°C to +80°C.
DRAWING General Specifications

Item	Contents	Unit
Size	2.4	inch
LCM Dimension	42.72(W)* 60.26(H) * 2.30(T)	mm
LCD Active Area	36.72* 48.96	mm
Number Of Dots	240×320	pixel
LCD Type	a-Si TFT
Viewing Direction	IPS
Driver IC	ST7789V
Interface Type	MCU
Operating Temperature	-20ºC~ 70ºC
Storage Temperature	-30ºC~ 80ºC
Backlight Type	4 LEDs
Brightness	380	Cd/m2

Interface

NO.	Symbol	Description
1	LEDA	BACKLIGHT ANODE
2	LEDK	BACKLIGHT CATHODE
3	NC	NC
4	NC	NC
5	NC	NC
6	IOVCC	I/O POWER SUPPLY
7	DB7	Data Bus
8	DB6	Data Bus
9	DB5	Data Bus
10	DB4	Data Bus
11	DB3	Data Bus
12	DB2	Data Bus
13	DB1	Data Bus
14	DB0	Data Bus
15	RD	Read signal, rising-edge-active
16	WR	Write signal, rising-edge-trigger
17	RS	Data/Command register address
18	CS	Chip enable, Low-active
19	TE	Frame mark
20	RESET	Reset pin
21	GND	Ground
22	GND	Ground
