Professional Manufacturer Wheel Turning Grinding Lathe CNC Vertical Machine

Product Description

Professional manufacturer wheel turning grinding lathe cnc vertical machine
Product Description

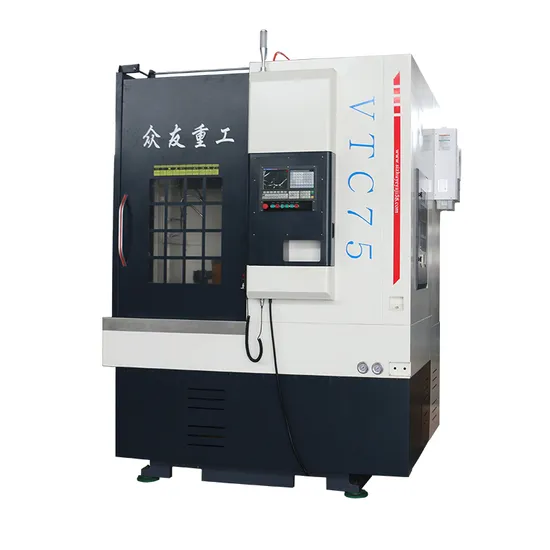

The VTC series of CNC vertical lathes are based on a high-rigidity structure combined with precision linear guides, equipped with a hydraulic positioning turret and a powerful spindle with large torque output, so that this series of machine tools can provide you with the most powerful cutting performance and excellent quality.
A CNC machine tool is an automated machine tool equipped with a program control system. The control system can logically process the program with control codes or other symbolic instructions, decode it, express it with coded numbers, and input it into the numerical control device through the information carrier. After arithmetic processing, the numerical control device sends out various control signals to control the action of the machine tool, and automatically process the parts according to the shape and size required by the drawing.
This series of machine tools is suitable for parts processing in various industries. External turning and boring are performed on the machine tool. It can be used for roughing and finishing of taper, slope and grooving. Since the workpiece is installed on a horizontal workbench, it is more convenient to clamp the workpiece.
Main features:
1. The main shaft of the machine tool is equipped with a 18.5KW variable frequency speed-regulating motor, which is suitable for high-speed cutting and semi-finishing and finishing of parts;
2. Both vertical and horizontal feeds are automatically controlled by servo motors. Set the balance in the vertical direction The counterweight structure greatly extends the life cycle of the lead screw
3. The machine frame is a horizontal or four-station electric structure, which can be equipped with a hydraulic chuck, which is convenient Operation, driven by electricity, improve work efficiency;
4. Special tools and encoders (for thread processing) can be installed according to user requirements;
5. This machine tool can be equipped with HNC, KND, GREAT, GSK and other domestic systems according to user requirements.
Standard configuration:
1- Three-jaw chuck (with special soft jaws)
2-8 station tool holder
3- Automatic lubrication system,
4- Turn the cooling system.
5- With detection system (TP300 Pioneer Sensing Probe TP300);
6- 1 set of diamond cutting machine
7- CNC controller SYNTEC / touch screen type
8- Fully enclosed (security door)
9-Specific digital optimization software
10- Training video CD
11- Work lighting system
In order to meet market demand, we independently developed the vertical grinding wheel cutting machine VT75 CNC vertical lathe. Based on years of manufacturing and sales experience, combined with user feedback, we have carried out a variety of humanized designs.
Packaging & Shipping
The surface is rust-proofed, the inner layer is plastic waterproof packaging, the outer layer is fixed with thick wood or steel frame, and then packed with synthetic board. Combined container transportation, or separate container transportation.

Company Profile
We have our own R&D team, which can provide solutions according to the parameters, processes and working conditions of the users' own products, and tailor-made for users: energy-saving, exquisite and durable hydraulic equipment. Our company has passed domestic ISO quality management system certification, EU, CE, SGS and other certifications, and has a number of product innovation patents and honor certificates.
FAQ
1. who are we?We are based in Shandong, China, start from 2010,sell to Domestic Market(35.00%),North America(9.00%),South America(7.00%),South Asia(7.00%),Eastern Europe(6.00%),Southeast Asia(5.00%),Africa(5.00%),Mid East(5.00%),Southern Europe(5.00%),Oceania(4.00%),Eastern Asia(4.00%),Western Europe(4.00%),Central America(3.00%),Northern Europe(00.00%). There are total about 101-200 people in our office.2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3.what can you buy from us?Hydraulic Press Machine,Press Machine,C Frame Hydraulic Press Machine,Powder Forming Hydraulic Press Machine,H Frame Hydraulic Press Machine,Four Column Press Machine,CNC Vertical Lathe Machine4. why should you buy from us not from other suppliers?The design and management of the company adopts network ,using CAD capp aided design ,we always adhere to the quality first ,service first ,integrity first corporate purpose company with a number of large state-owned enterprises ,5. what services can we provide?Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,FCA,CPT;Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian

---
