High-Speed CNC Drilling Machine for Heavy Steel Beams

US$21,857.00
1 Piece
US$21,420.00
2-4 Pieces
US$21,200.00
5+ Pieces

Basic Info.

Model NO.
ZMD-Z2016
Structure
Bench Drilling Machine
Layout
Vertical
Controlling Mode
CNC
Number of Shaft
2
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001, SGS
Condition
New
Thickness of Material Stacking(mm)
100mm
Number of Clamping Cylinders 12
Clamping Force7.5kN/1PC.
Spindle Speed (Frequency Conversion Step
100-560rpm
Work Feed Speed
20-200mm/Min(Hydraulic Speed Regulation)
Spindle Feed Stroke
190mm
Spindle Motor Power
5.5kw
Transport Package
Export Standerd
Specification
4210*2605*2850mm
Trademark
ZMDE
Origin
Shandong, China
Production Capacity
Other

Packaging & Delivery

Package Size
2500.00cm * 600.00cm * 600.00cm
Package Gross Weight
4000.000kg

Product Description

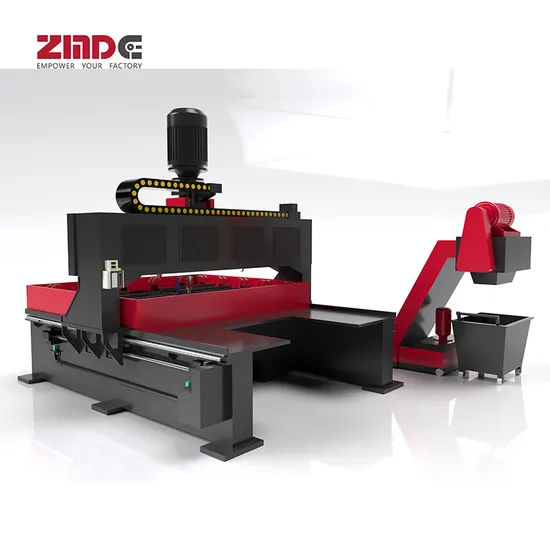

ZMDE High Speed CNC Drilling Machine for Steel Plates Heavy Structural Fabrication Drilling Machine for H Beam Steel

>Achieve cost-effectiveness with our premium-grade equipment <
1. Constructed with robust, high-quality materials, our machine boasts an exceptionally low failure rate, drastically reducing maintenance costs. Featuring industry-renowned brands for critical components like ball screws, linear guides, hydraulic parts, electrical systems, servo motors, and frequency converters.
2. Equipped with CRT display for automatic chip removal, it eliminates manual cleaning time, offering significant cost savings.
3. Our equipment ensures high precision and an excellent qualification rate for workpieces, minimizing consumable costs effortlessly.
>Enjoy simple operation and high productivity <
1. The user-friendly human-machine interface is both clear and visual, making programming automatic machining processes seamless.
2. Controlled by advanced CNC and PLC systems, it guarantees pinpoint accuracy in positioning.
3. With hydraulic clamps for secure workpiece clamping and foot switch control, operations become convenient and labor-saving.
4. Featuring 12 rapid hydraulic clamps around the table, it allows for simultaneous clamping of four groups of workpieces, enhancing workflow.
5. Small workpieces can be clamped at the table's four corners, significantly reducing production preparation cycles and boosting efficiency.
6. The ability to clamp small workpieces at the table's corners further shortens preparation times and amplifies production efficiency.
> Guaranteed quality with versatile applications <
1. Key components such as the gantry, column, and table are built from sturdy materials, with the main machine weighing up to 6300kg, ensuring durability and stability.
2. The machine serves a wide range of industries, acting as the core equipment for steel plate processing.
3. Capable of handling drilling diameters ranging from 12mm to 50mm, it offers versatility for diverse applications.
> Ideal for various production scenarios <
1. Perfect for the continuous production of multiple batches of single flat-type workpieces.
2. Suitable for small batch production of various workpiece types, including rectangular, round flange, and polygonal plates. It can also process two to four different specifications of plates simultaneously.
3. Capable of producing multiple layers of thinner sheets in stacks, with a maximum stack drilling capacity of 100mm.
4. The software allows for automatic processing of both start and end points, enabling the drilling of through holes, blind holes, step holes, and chamfered hole ends.
> Streamlined production process automation <
1. Integrated line board ensures a high degree of automation, with automatic positioning according to the drilling program.
2. Adjusts optimal feeding volume to accommodate different hole diameters, enhancing precision.
3. Facilitates automatic, continuous processing of large hole diameters, achieving one-time processing and forming.
4. Includes an automatic chip removal function for uninterrupted operations.
Technical Parameters
Model ZMD-Z2016
Workpiece Size Thickness of material stacking(mm) 100
Length×Widthhhhh
(mm)
2000×1600 One piece
1600×1000 two pieces
1000×800 Four pieces
Workpiece clamping Number of clamping cylinders 12 Clamping force7.5Kn/1pc.
Vertical hydraulic type
Drilling power head
Number of spindles 1piece
Spindle taper hole morse.taper 5#,4#
Maximum drilling diameter 50mm
Spindle speed (frequency conversion stepless) 100-560rpm
Work feed speed 20-200mm/min(hydraulic speed regulation)
Spindle feed stroke 190mm
Spindle motor power 5.5KW
Gantry longitudinal
movement (X-axis)
Maximum stroke 2000mm
Traveling speed 0-5m/min
Servo motor power 1KW
Power head lateral
movement (Y-axis)
Maximum stroke 1600mm
Traveling speed 0-5m/min
Servo motor power 1KW
Hydraulic system System pressure/flow 6MPa/30L/min
Hydraulic pump motor power 2.2KW
Oil tank capacity 100L
Chip removal
and cooling
Form of chip conveyor Chain plate type
Number of chip conveyor 1
Chip discharge speed 1m/min
Power of chip removal motor 0.75KW
Cooling pump motor power 0.75KW
Liquid system pressure 5MPa
CNC System Upper-computer software ZMDE
Number of numerical control axes 2
Total installed power 11KW
Machine Outline Dimension L×W×H 4210×2605×2850mm
Weight Main machine Approx. 4300Kg
Chip removal system Approx. 500Kg

Company Profile
Established in 2013, ZMDE Co., Ltd. stands as a trailblazer in the realm of intelligent assembly building equipment. As a high-tech enterprise, we pride ourselves on our national recognition as a 'specialization, speciality, and new small giants' enterprise. Our core capabilities revolve around the development, manufacturing, sales, and service of state-of-the-art steel structure assembly building intelligent industrial mother machines and innovative Industry IoT solutions.Our expertise extends to intelligent control systems, specifically targeting two pivotal areas.
Strategically located in Lingang New Area, Pudong New District, Shanghai, our headquarters span an impressive 32,000 square meters. This space is dedicated to our Research Institute of Artificial Intelligence for Assembled Buildings, where we drive the management and research efforts for cutting-edge core technologies in Artificial Intelligence for Assembled Buildings, Intelligent Buildings, and the Industrial Internet of Things (IoT).
Our Shandong base, nestled in Weicheng District, Weifang City, is the epicenter for groundbreaking research, development, and production of intelligent industrial mother machines tailored for steel beams of assembled buildings.Additionally, this facility is pivotal in the creation of intelligent industrial mother machines for the walls of assembled buildings.
