Basic Info.
Column number
Double Column
Automatic Grade
Automatic
Forming Mothod
Positive Pressure Forming
Forming Depth
Maximum Forming Depth Is 180mm
Thickness of Material
0.3-2.2mm
Aplicable Material
PP, PS, Pet, PVC, etc.
Transport Package
Wooden Case
Specification
6.2x1.8x3.2m
Production Capacity
800set/Year
Packaging & Delivery
Package Size
900.00cm * 250.00cm * 290.00cm
Package Gross Weight
11000.000kg
Product Description

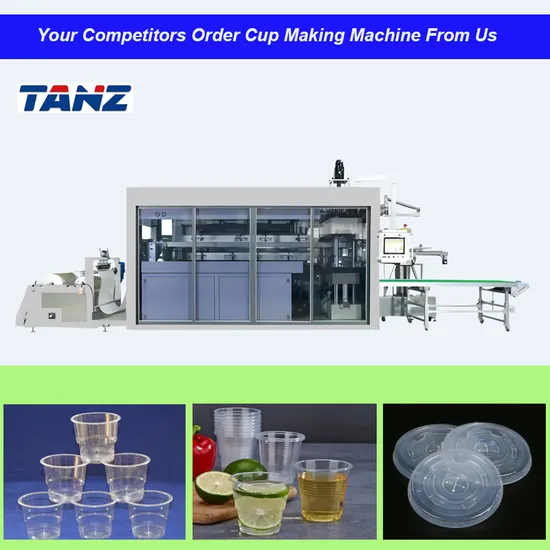

Fully Automatic Disposable Plastic Bowl Lid Plate Cup Making Machine
Product Description
What is a cup making machine?
A cup making machine is a machine specially designed for making cups. It is characterized by efficiency, accuracy, convenience and speed. First of all, the cup making machine adopts advanced technology and can complete a large number of cups in a short time, greatly improving production efficiency. Secondly, the cup making machine can accurately control the size, shape and thickness of the cup, ensuring the quality and consistency of the cup. In addition, the cup making machine is easy to operate.
You only need to follow the instructions to complete the cup making process. No professional skills and experience are required. Finally, the cup making machine is fast and can make a complete cup in a few minutes, which greatly shortens the cup making cycle and improves production efficiency. In addition, cup making machines have other features. For example, it can be customized according to different needs to meet the needs of different customers. At the same time, the cup making machine is also energy-saving and environmentally friendly.
It uses advanced technology to reduce energy consumption and waste generation, and protect the environment. In general, the cup making machine is an efficient, accurate, convenient, fast, customized, energy-saving and environmentally friendly machine with broad application prospects and market potential.
Product working principle:
The working principle of the cup making machine is to put the raw materials into the raw material supply system. After being heated by the heating system, the raw materials become softened and easy to shape. Then, the molding system extrudes the softened raw material into a cup shape, and transports the cup to the designated location through the conveying system. During the entire process, the control system is responsible for controlling the operation of the machine and ensuring the quality and efficiency of cup production.
Product Parameters
Cup Making Machine(TZ-750B) |
1 ,Forming method: Positive pressure forming |
2 ,Mold area: Length: 350-450mm Width: 450mm-750mm |
3 ,Forming depth: Maximum forming depth is 180MM |
4 ,Maximum and minimum thickness of the material: 0.3-2.2MM |
5 ,Applicable materials: PP, PS, PET, PVC, etc. |
6 ,Total power: Installed capacity 180KW (maximum power) |
7 ,Upper stretching station: Huichuan servo 7.5KW |
8 ,Lower molding station: Inovance servo 15KW |
9 ,Feeding mechanism: 5.5KW Huichuan puller |
10 ,Operating system: "Huichuang" 15-inch color touch screen |
11 ,Solenoid valve, water and oil separator: Japan "CKD" |
12 ,Heating bricks: German heating bricks "Elstein" upper furnace 108 pieces 800W, lower furnace 99 pieces 800W, 3000MM long heating area |
13 ,Main electrical equipment configuration: Inovance servo, Japan Fuji |
14 ,Cooling method: One water chiller, 10HP (compressor "Japanese Panasonic or "American Copeland") |
15 ,Adopt RLC programmable control and human-machine interface "Inovance" 15-inch color touch screen operating system, this system can greatly enhance the action process |
16,Stability and reaction speed |
It has a memory function of 1000 groups, which can store the production data of the product. The old data can be called out for production next time. |
17 ,Part of the cylinder: Zhichengsheng |
18 ,Relay: French |
19, Air switch, contactor, travel switch: Fuji FUJI from Japan |
20,Main frame: Steel plate, angle iron, pig iron, stainless steel are made in China |
21 ,Chain: Dongfeng |
22 ,Rail: Main body aluminum profile, chain support 45# steel, cover plate 304 stainless steel combination 22 |
23 ,Automatic oil pump lubrication at workstation |
24 ,Maximum power consumption of the whole machine: 180KWV, actual power consumption is about 80KW Voltage: 380V50HZ |
25 ,Equipment size: The whole machine is about 6.2 meters long, 1.8 meters wide, 3.2 meters high and weighs about 8 tons |
Scope of application:
Our plastic cup thermoforming machine is widely used in the processing of PP, PE, PVC, PS, PET, and other plastic sheets. It can produce various food packaging products such as plastic cups, plastic boxes, plastic plates, plastic trays, plastic bowls, and so on.
Production Process
Auxiliary Machines For Plastic Cup Making Machine:
Machine Details
Relative Machines
Plastic Sheet Extrusion Machines
Taizhang provide a variety of plastic sheet extrusion production line solution, such as PET, PP, PE, PS, ABS, PC, PMMA, PLA, etc. Widely used in plastic sheet thermoforming industry.
Plastic Sheet Thermoforming Machines:
Taizhang provide professional plastic sheet thermoforming production solution, widely suitbale for produciton of plastic food container, fruit egg tray, seedling tray, electronic tray, plastic cup, lid, plate, flowerpot,etc.
Plastic Cup Making Machine
Taizhang pisposable cup making machines,they are widely
used for plastic milk tea cups, coffee cups, disposable watercups, fast food box,plastic lid,fruit box,fresh food tray,etc.
>>
