Product Description
Product Description
1.Parameters:

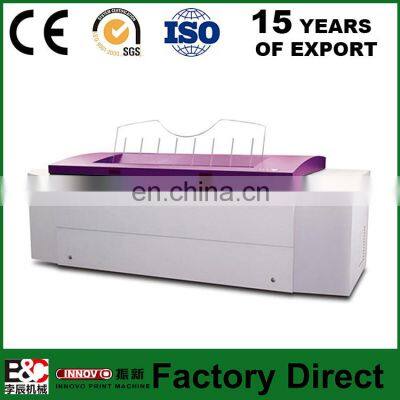

ALPHA CTP Specifications
|
Model
| Thermal CTP 90II F
| Thermal CTP 900II S
| Thermal CTP 900II E
|
Exposing Method
| External Drum
|
Imaging System
| 64-channel
| 48-channel
| 32-channel
|
Discrete 830nm laser diode
|
Throughput
| 29 plates per hour
| 22 plates per hour
| 16 plates per hour
|
1,030mm×800mm 2,400dpi
|
Plate Size
| Max. 1,130mm×900mm, min.400×300mm
|
Exposing Size
| Max.1,130mm×884mm, min. 400mm×284mm
|
Media Type
| 830nm thermal plate
|
Plate Thickness
| 0.15mm to 0.3mm
|
Resolutions
| 2,400dpi
|
Repeatablity
| continuous exposing for four times or above on the same plate with a temperature of 23°C and humidity of 60%)
|
Interface
| USB2.0
|
Plate Loading
| semi automatic
|
Weight
| 900KG
|
Size (W×D×H)
| 2,530mm×1,050mm×950mm ( W×D×H )
|
Power Supply
| single-phase .220AC, +6%, -10%, Power Consumption .4KW
|
Environment
| recommended. 21-25°C,Max. 18-26°C,humidity. 40-70%
|
2.Description:
Specificationsthermal CTP
1.no preheating,low energy level
2.capable for all applications..
3 Excellent dot reproduct,1-99%under205IP
Mature and reliable 32-64 channels; Discrete 830nm laser diode technology.
Extremely clear and sharp screen dots can be exposed; Resistance rate is high and it’s operated in light room; Service life extends as long as tens of thousands of hours; Replacement is economic and convenient.
Dynamic and Automatic Focusing
Track in real time the variation of surface fluctuation and adjust the lens forwards or backwards to assure the distance between exposure dots and lens is unchangeable. Each laser spot is exposed at the best focal length to assure all the screen dots are accordant, clear and sharp.
Special Screen Dots Control Technology
Screen dots gain problems caused by size of laser spots are accurately compensated for so that 1%~ 99% grayscale gradients is perfectly presented.
Exposure Design with External Drum Style
The printing plates are clamped and bent in the style closest to the press, high-quality and exactly accordant dots are exposed and printing formes are output at high speed up to 29 pages of 1030x800mm per hour.
Convenient Operation
High-speed USB2.0 interface makes Thermal CTP have Plug and Play function like a desktop printer. The aided output management software (Tiff download) can realize seamless link with any mature workflow.
3.Company strength:
1.15 years factory experience
2.10 years export experience
3.Over one hundred professional factory workers
4.100% quality guarantee,supply all kinds of certificates
5.Good after-sales serive,we send engineers to repair machine overseas.
6.Primary products:
Automatic High Speed Flute Laminater
ZXSCM Book Case Making Machine
650UV Coating Machine
ZX-650C Manual Paper Pasting Machine
Box Making Machine
Hot Melt Gluing Machine and Gluing Machine
Table Gluing Machine
Paper Pressing Machine.etc
7.Following is our factory pictures:
4.Certificate:
5.Trade show:
6.Packaging & Loading:
Welcome to visit our factory!
>>
