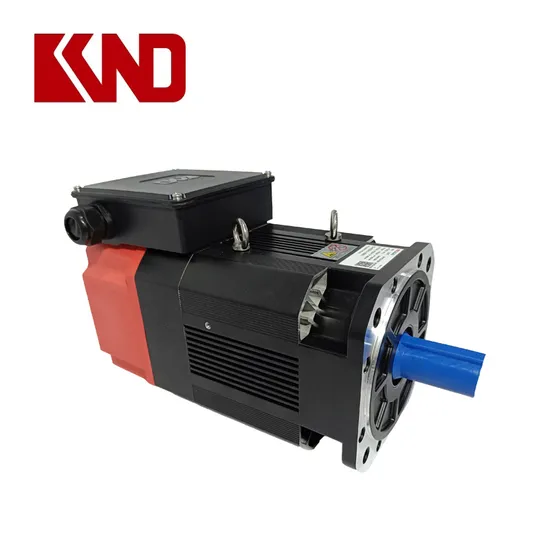

Zjy-Kf205-5.5-1500 AC Asynchronous Spindle Three Phase Electric Motor for Machine Tools

Product Description

Product Description KND brand was founded in Beijing in 1993, mainly engaged in CNC system and industrial automation product research and development, production, sales and service. After nearly 30 years of development, KND has a series of products in six categories, including CNC system, robot controller, pan-automation controller, feed drive and motor, spindle drive and motor, and industrial Internet, which meet the application needs of CNC lathes, CNC milling machines, machining centers, grinding machines and other tool and equipment industries and industrial robots, truss robots, workshop networking, data acquisition and analysis, etc., providing a sufficient range of choices for different users.
>·Model Selection
Our professional sales representive and technical team will choose the right model and transmission solutions for your usage depend on your specific parameters.
>·Drawing Request
If you need more product parameters, catalogues, CAD or 3D drawings, please contact us.
>·On Your Need
We can modify standard products or customize them to meet your specific needs.Motor FeaturesBeautiful appearance and compact structureHigh-speed and high-precision encoderStrong overload capacity, reliable operation of 1.5 times the rated power in 30 minutesProtection level: IP54Vibration level: Level BInsulation class: FKE: With case, lighter weightModel ExplanationWiringPhotoelectric 1024-line/2500-line/5000-line Encoder Socket (12-core)
4-core: applicable for 80 series

Signal	FG	+5V	0V	A+	B+	Z+	A-	B-	Z-	/	P	T
Core No.	1	2	3	4	5	6	7	8	9	10	11	12

17-bit single turn/16-bit Multi-turn Battery Absolute Encoder (12-core)

Signal	FG	E-	E+	SD-	0V	SD+	+5V	/	/	/	P	T
Core No.	1	2	3	4	5	6	7	8	9	10	11	12

Resolver Socket (12-core)

Signal	FG	EXC+	EXC-	COS+	COS-	SIN+	SIN-	/	/	/	P	T
Core No.	1	2	3	4	5	6	7	8	9	10	11	12

Sin-cos Encoder Socket(12-core)

Signal	FG	+5V	0V	A+	B+	Z+	A-	B-	Z-	/	P	T
Core No.	1	2	3	4	5	6	7	8	9	10	11	12

Temperature Signal: Thermal protection switch,P and T are normal closed signalsSpecification Parameter

Model	Rated power (KW)	Rated speed (r/min)	Rated frequency (Hz)	Rated current (A)	Rated torque (N▪m)	Maximum speed (r/min)
						A1	A	B	C	D
ZJY-KF205-5.5-1500	5.5	1500	50	15	35	-	-	8000	10000	12000

Supplemental Instruction
Specification & Dimension

Model	ZJY-KF205-3.7-1500	ZJY-KF205-5.5-1500	ZJY-KF205-7.5-1500	ZJY-KF205-11-1500	ZJY-KF205-11-2000
F(Frame NO.)	205	205	205	205	205
E	80	80	80	80	80
U	73	73	73	73	73
L	384	419	459	489	459
Weight: Kg	40.5	48.5	58	66	58

*Note: We can manufacture products according to customer's requirements.
Motor characteristic curve

Motor model	Power/Speed curve	Torque/Speed curve
KF205-5.5-1500 K132-5.5-1500

Company ProfileBeijing KND Automation Technology CO.,Ltd
ABOUT US
Beijing KND CNC Technique Co.LTD(KND) was established in 1993.It is a joint-stock private enterprise that is the earliest one focusing on the research,production,sales and service of CNC system in China.It has the qualification of national high-tech enterprise,and it is one of the largest CNC system brand in China.
KND has the core technology of self-research and possesses independent intellectual property rights. After 30 years' development, it has a number of series products: CNC system, robot controller, automation controller, feed driver and motor, spindle driver and motor, industrial Internet.These products can meet the application requirements of CNC lathes, CNC milling machines, machining centers,grinding machines and other industrial equipments.It can also be used in industrial robots, truss robots, workshop networking,data collection and analysis,and other automation fields.So,KND provided a full range of choices for different kinds of clients.
DEVELOPMENT HISTORY
PRODUCT DISTRIBUTION
MOTOR OVERVIEW
K series synchronous servo motor is a high-performance five-pole motor developed by KND;its power ranges from 0.2kW to 7.5kW and its frame includes 60, 80, 90, 110,130, 180 series. The kind of products have the characteristics of small size, high power, high speed, better encoder configuration, and strong overload capacity.If it is used with the SD510 series driver of KND, it can make the position control come true quickly and accurately.This combination can be applied in a variety of occasions which have a higher requirements for precision control.ZJY (-K) series AC spindle servo motor used for CNC machine tools has the characteristics of compact structure,long service life,small moment of inertia and higher control accuracy. Combined with ZD210 series of new spindle servo driver, can make its performance get better display.It can be widely used in various CNC machine tools and it can also be the spindle,feed and other parts of the CNC mechanical products.ZJY (-K) series spindle servo motor's parameters showed below, rated power: range from 3.7kW to 37kW, rated voltage: 380V, rated frequency: 25, 33.3, 50, 66.67, 83.33Hz, rated speed: 750, 1000, 1500,2000, 2500r/ min.The maximum speed can reach 12000r/ min. The working system of the motor is S1, the protection level is IP54, and the insulation level is F. There are thermal element in the interior of motors., this kind of moter lose heat by a independent fan.You can choose a motor with a photoelectric encoder or a rotary transformer,that depends on your needs.
