Basic Info.
Automatic Grade
Automatic
Usage
Aluminum Windows and Doors
Video Outgoing-Inspection
Provided
Transport Package
Packaged
Specification
5900*1370*1720mm
Production Capacity
50sets/Month
Product Description
Product Description
Basic Info.
Model | LJB1A-500*4200 | Max.cutting width | 140mm |
Motor power: | 2*2.2kw | Cutting angle: | 90° and 45° (outward) |
Air pressure | 0.5-0.8Mpa | Angle tolerance | ±5′ |
Air consumption | 200L /min | Flatness | ≤0.05mm |
Rotation speed | 2800rpm. | Surface roughness | Ra12.5um |
Blade size: | Ø500*Ø30*4.4mm*140T | Overall dimension | 5900*1360x1720mm |
Cutting length | 370-4200mm (90°) | Weight | 1400Kg |
Detailed Photos
TEXT

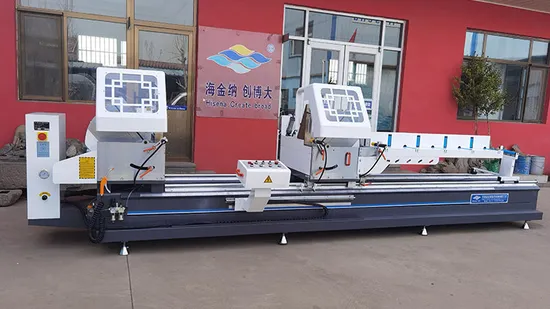

LJB1A-500*4200 is a double head miter saw for 90 degree and 45 degree cutting, used for the production of aluminum windows and doors.
Standard Features:
Applicable material: aluminum,thermal break profile. Hydro-pneumatic saw feed along linear guide rails. Saw heads can be pneumatically tilted at outward 45 and 90 degrees. Equipped with digital display for reading the cutting length. Right head can be locked by pneumatic braking. Automatic opening safety guard. product lines
Our Advantages
HISENA specializing in production and selling UPVC and aluminum doors and windows manufacturing equipment was established in 2008. Our company is located in Jinan, China. We have professional team of 50 staff in R&D, production, marketing and after-sales service. Mr. Linwei Zheng, our general manager, has been adhering to the rigorous craftsmanship spirit for more than 10 years, always considering customer needs and customer experience, and constantly innovating to meet market requirements. Routine
Packaging & Shipping
1.Payment Terms: 40% T/T in advance, 60% T/T balance before delivery.
2.Delivery Time:15 working days after payment.
3. Packed with plywood cases or as request and acutal need.
Company Profile
After-ales Service
Answer support requests inside a two-hour time frame
Most issues are resolved within 24 hours.
When needed, a technician is usually sent the next day
Most parts are kept in our inventory to reduce idle time
Warranty Policy
Service life of our equipment is more than 10 years. All products are with 1 year warranty.
Installation and Training
Our equipment has been debugged before leaving factory to meet production standard requirements. We can provide engineers on-site installation training, remote videophone installation guidance, installation and commissioning videos, user manuals and variety methods.
Accessories
Necessary replacement spare parts for all equipment are dispatched with the equipment. In our warehouse, almost all accessories are in stock, usually we will send related accessories out the next working day upon request from customers.
>>
